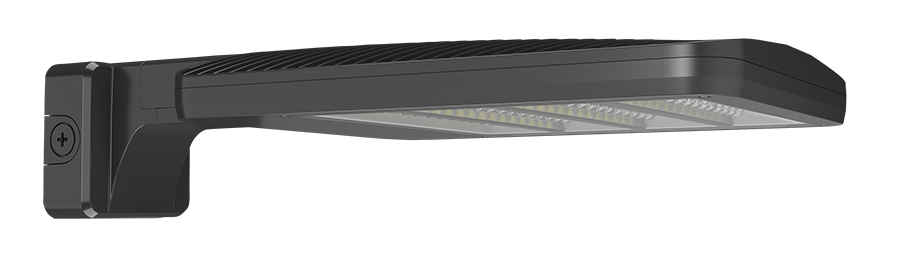

RAB ALED 78W-90W-150W Type II 5000K Wall Mount Bronze (ALEDM2TWM)

RAB ALED 78W-90W-150W Type II 5000K Wall Mount Bronze (ALEDM2TWM)

SKU ALEDM2TWM
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

This medium ALED area light mounts directly to a wall or other vertical building surface, delivering broad, controlled Type II light across parking areas, service drives, and loading zones without requiring a pole.

Field-adjustable output lets one SKU cover a range of jobs: 150W at full brightness puts out 19172 lumens as a direct replacement for 400-watt metal halide, and the light steps down to 90 watts or 78 watts in the field for lower-demand areas. The 120-277V universal-voltage driver runs on any standard commercial line voltage, and 0-10V dimming down to 10 percent allows further trimming when the driver is tied to a control system. The bronze finish suits commercial buildings, warm-toned facades, and wood or masonry exteriors. The fixture ships tuned for 5000K cool white for maximum visibility and color contrast on security-oriented sites.

Features

  • Wattage: 150 watts, field-adjustable to 90 watts or 78 watts in three discrete steps (factory-set to 150 watts)
  • Lumen Output: 19172 lumens at 150W • 12604 lumens at 90W • 10592 lumens at 78W
  • Color Temperature: 5000K (cool white)
  • Color Rendering: 85 CRI
  • Finish: Bronze, formulated for long outdoor weather exposure
  • Distribution: Type II, tuned for lighting long, narrow areas beside a building line
  • Dimming: 0-10V dimming down to 10 percent (separate 0-10V DC dimming circuit required)
  • Input Voltage: 120-277V universal
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Mounting: Direct wall mount to a vertical building surface
  • Cold-Weather Start: Operates down to -40°F (-40°C)
  • Vibration Rating: 3G per ANSI C136.31
  • Ingress Protection: IP66 (dust-tight, protected against powerful water jets)
  • Rated Life: 100,000 hours to L70

Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Warehouses and Distribution Centers • Wall Pack Retrofits

UL Listed and suitable for wet locations, with an IP66 ingress rating. Rated for cold-weather starting down to -40°F (-40°C).

Frequently Asked Questions
How bright is this product?
This product offers 10592/12604/19172 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
