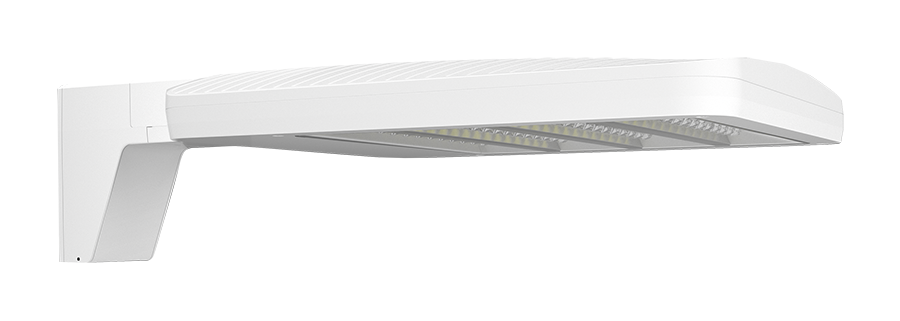

RAB ALED 78W-90W-150W Type II 5000K Pole Mount White (ALEDM2TW)

RAB ALED 78W-90W-150W Type II 5000K Pole Mount White (ALEDM2TW)

SKU ALEDM2TW
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

This medium ALED area light mounts to a pole with a universal arm compatible with 1 to 3 inch hole spacing patterns, and delivers Type II distribution for parking lots, roadways, walkways, and campus perimeters. A round-pole adapter plate comes standard. Field-selectable wattage sets the output to 150W, 90W, or 78W at the fixture, so one SKU covers a range of pole heights and coverage targets.

The 5000K color temperature produces a crisp, neutral white for security, wayfinding, and vehicle-way applications where clarity matters. The driver accepts 120-277V input for standard commercial and industrial circuits and includes 0-10V dimming down to 10 percent.

Features

  • Field-Selectable Wattage: 150W / 90W / 78W (factory default 150W)
  • Color Temperature: 5000K Cool White
  • Lumen Output: 10592/12604/19172 lm at the 150W / 90W / 78W settings
  • Efficacy: 139/137.2/129.1 lm/W at the 150W / 90W / 78W settings
  • Color Accuracy: 85 CRI
  • Distribution: Type II
  • Wattage Equivalency: Replaces up to 400W metal halide
  • Input Voltage: 120-277V
  • Housing: Die-cast aluminum with polycarbonate lens
  • Mounting: Universal arm for 1 to 3 inch pole hole spacing; round-pole adapter included
  • Ingress Protection: IP66 rated against dust and water
  • Vibration Rating: 3G per ANSI C136.31
  • Dimming: 0-10V dimming down to 10 percent
  • Cold Start: Starts down to -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • L70 Lifespan: 100,000 hours
  • Finish: White, formulated for high durability and long-lasting color

Ideal For: Parking Lots • Roadways • Walkways • Campus Grounds • Perimeter Lighting

UL Listed for wet locations. IP66 rated.

Frequently Asked Questions
How bright is this product?
This product offers 10592/12604/19172 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
