RAB ALED Field Adjustable Area Light 78W/90W/150W Type II 3000K Slipfitter Mount White (ALEDM2TSFYW)

RAB ALED Field Adjustable Area Light 78W/90W/150W Type II 3000K Slipfitter Mount White (ALEDM2TSFYW)

SKU ALEDM2TSFYW
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

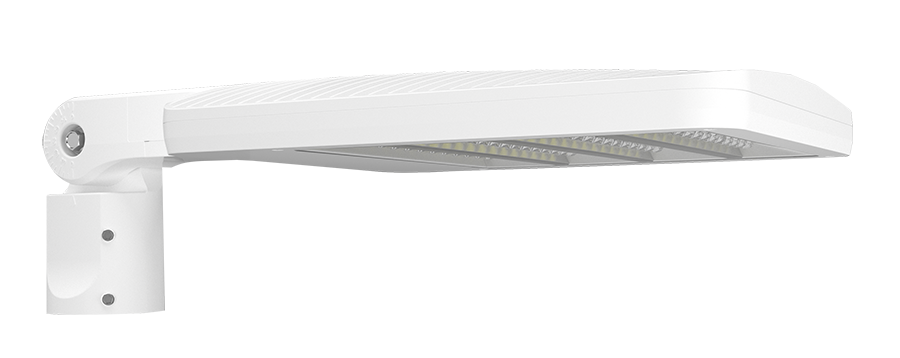

This medium ALED area light mounts to a standard 2-3/8 inch slipfitter tenon and delivers Type II distribution for parking lots, roadways, walkways, and campus perimeters. Field-selectable wattage sets the output to 150W, 90W, or 78W at the fixture, so one SKU covers a range of pole heights and coverage targets.

The 3000K color temperature produces a warm white that softens the visual impact on adjacent buildings and pedestrian areas. This SKU is IDA Dark Sky Approved for use in communities with dark-sky ordinances. The driver accepts 120-277V input for standard commercial and industrial circuits and includes 0-10V dimming down to 10 percent.

Features

  • Field-Selectable Wattage: 150W / 90W / 78W (factory default 150W)
  • Color Temperature: 3000K Warm White
  • Lumen Output: 18,802/12,360/10,371 lm at the 150W / 90W / 78W settings
  • Efficacy: 124.2/132.2/133.8 lm/W at the 150W / 90W / 78W settings
  • Color Accuracy: 82 CRI
  • Distribution: Type II
  • Wattage Equivalency: Replaces up to 400W metal halide
  • Input Voltage: 120-277V
  • Housing: Die-cast aluminum with polycarbonate lens
  • Mounting: 2-3/8 inch slipfitter with stainless steel hardware; tilts in 5 degree increments
  • Ingress Protection: IP66 rated against dust and water
  • Vibration Rating: 3G per ANSI C136.31
  • Dimming: 0-10V dimming down to 10 percent
  • Cold Start: Starts down to -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • L70 Lifespan: 100,000 hours
  • Dark Sky: IDA Dark Sky Approved (3000K)
  • Finish: White, formulated for high durability and long-lasting color

Ideal For: Parking Lots • Coastal Communities • Campus Grounds • Roadways • Wildlife-Sensitive Areas

UL Listed for wet locations. IP66 rated. IDA Dark Sky Approved for use in areas with dark-sky ordinances.

Frequently Asked Questions
How bright is this product?
This product offers 10371/12360/18802 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 3000K, providing soft white light that maintains warmth while delivering clear, comfortable illumination.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
