Product Description

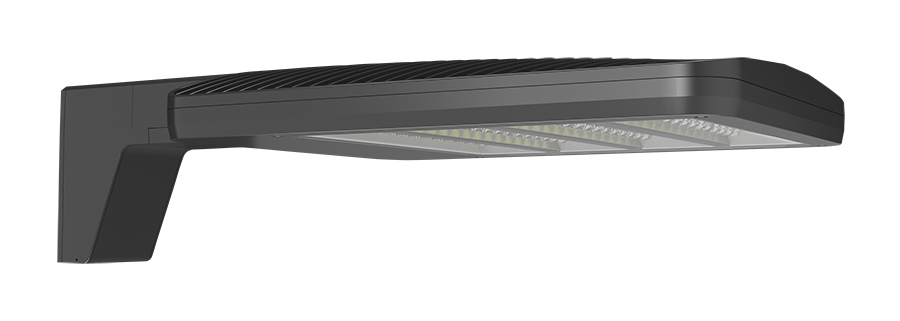

This medium-housing ALED area light mounts on a horizontal arm to a square pole or wall bracket, casting a controlled Type II distribution across parking lots, service drives, wide walkways, and entrance roadways at up to 19,172 lumens. Three factory-programmed wattage settings — 78W, 90W, and 150W — are selectable in the field, so a single fixture can be tuned to the site's actual light-level target after install and replaces a 400W metal halide with a fraction of the energy draw.
This variant is pre-configured for 480V input, matching the high-voltage service common at industrial complexes, large distribution centers, and big-box commercial sites where 480V feeds cut wire size and voltage drop across long pole runs. A 7-pin ANSI C136.41 twist-lock receptacle sits on top of the housing, ready for a photocell, wireless network control node, or motion sensor without ever opening the fixture in the field. The 5000K cool color temperature delivers a crisp, daylight-white output that maximizes contrast and visibility in parking lots, security perimeters, and vehicle-traffic zones. The bronze finish is the standard commercial specification for parking-lot and site lighting, disappearing against brick, stone, and darker architectural elements.
Features
- Field-adjustable output: 78W, 90W, or 150W (factory default 150W), delivering 10,592, 12,604, or 19,172 lumens at efficacies of 139, 137.2, and 129.1 lumens per watt
- Type II optic for controlled, wide throw along roadsides, walkways, and lot edges
- 85 CRI at 5000K for accurate color rendering on painted lines, signage, and vehicle finishes
- 100,000-hour L70 LED lifespan with 10 kV line-to-line surge protection
- 0–10V dimming standard, dimming down to 10%
- 480V input driver, Class 2 rated at 78W and 90W, non-Class 2 at 150W
- 7-pin ANSI C136.41 twist-lock receptacle for add-on photocell, network node, or motion sensor
- IP66-rated die-cast aluminum housing with polycarbonate lens, bronze powder-coat finish
- Universal mounting arm fits 1" to 3" hole spacing with a round-pole adapter included; 0.37 EPA
- 16.5 lb fixture weight, backed by RAB's 10-year no-compromise warranty
Ideal For: Parking Lots • Service Drives • Loading Zones • Entrance Roadways • Wide Walkways • Commercial Site Lighting
UL listed for wet locations, IP66 rated for dust and water ingress, 3G vibration rated per ANSI C136.31, cold-start rated to -40°F, and rated for ambient temperatures up to 104°F.
