Product Description

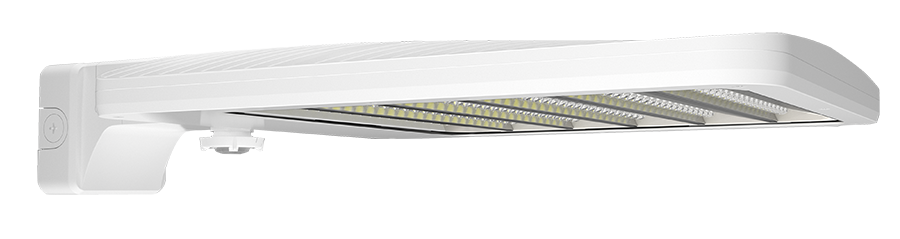

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage covers three output steps — 260W, 220W, or 170W — so installers can dial the target light level on the job site without swapping the fixture.
Cool 5000K light puts out a bright, daylight-white pattern that suits security and industrial applications where visibility outweighs color warmth. AT-distribution (car dealership) optics throw a wide pattern with an intentional forward hot spot, keeping stray light on the building side minimized. Wired for 480V input, this configuration matches three-phase 480V commercial and industrial service without a step-down transformer. An integrated WattStopper motion sensor is lensed for a 40-foot mounting height and dims light to a low idle when the area clears, stepping back up when motion enters the pattern.
Features
- Field-adjustable output: 260W (default), 220W, or 170W — replaces a 1,000W metal halide fixture
- Delivers 25,765 lumens at 170W, 33,272 lumens at 220W, or 37,583 lumens at 260W
- 5000K cool color temperature with 84-85 CRI color accuracy
- 480V input with 0-10V dimming down to 10%
- Integrated WattStopper multi-level motion sensor lensed for 40-foot mounting height
- White die-cast aluminum housing with polycarbonate lens
Ideal For: Parking Lots • Loading Docks • Service Drives • Warehouse Yards • Wall Pack Replacement
Wet location listed by UL and rated IP66 for dust and driving rain. Cold-start capable to -40°F, rated up to 104°F ambient, and built to a 3G ANSI C136.31 vibration standard. Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets.
