Product Description

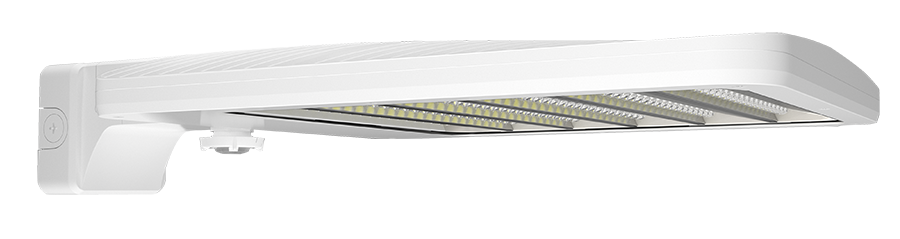

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage covers three output steps — 260W, 220W, or 170W — so installers can dial the target light level on the job site without swapping the fixture.
Neutral 4000K color temperature shows facades, vehicles, and signage in accurate color without the blue cast of a cool white. AT-distribution (car dealership) optics throw a wide pattern with an intentional forward hot spot, keeping stray light on the building side minimized. Wired for 480V input, this configuration matches three-phase 480V commercial and industrial service without a step-down transformer. An integrated WattStopper motion sensor is lensed for a 40-foot mounting height and dims light to a low idle when the area clears, stepping back up when motion enters the pattern.
Features
- Field-adjustable output: 260W (default), 220W, or 170W — replaces a 1,000W metal halide fixture
- Delivers 26,457 lumens at 170W, 34,268 lumens at 220W, or 38,340 lumens at 260W
- 4000K neutral color temperature with 84 CRI color accuracy
- 480V input with 0-10V dimming down to 10%
- Integrated WattStopper multi-level motion sensor lensed for 40-foot mounting height
- White die-cast aluminum housing with polycarbonate lens
Ideal For: Parking Lots • Loading Docks • Service Drives • Warehouse Yards • Wall Pack Replacement
Wet location listed by UL and rated IP66 for dust and driving rain. Cold-start capable to -40°F, rated up to 104°F ambient, and built to a 3G ANSI C136.31 vibration standard. Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets.
