Product Description

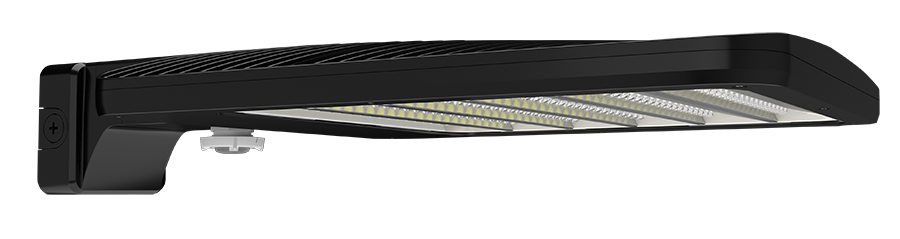

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole.
A 5000K cool-white color temperature gives the crisp, daylight-white cast most site managers spec for parking lots, service bays, and commercial perimeters where visibility and security are the priority. Field-adjustable wattage lets an installer step the fixture between 170W, 220W, and 260W on-site to match the target foot-candles or a utility rebate spec. A built-in WattStop occupancy sensor with a 40-foot lens holds full output when it detects motion and drops back to a preset low level when the area clears — a fit for longer throws across parking lots, loading yards, and wider commercial perimeters.
Features
- Field-adjustable output: 170W, 220W, or 260W selectable on-site (factory default 260W)
- Delivers 25,765 to 37,583 lumens depending on the wattage step selected, at up to 154 lm/W efficacy
- 5000K color temperature; 85 CRI for accurate color rendering on faces, vehicles, and signage
- Automotive Type (AT) optics: wide distribution with a defined hot spot, engineered for auto dealership front rows and similar presentation-lit applications
- Integrated WattStop multi-level motion sensor with 40-foot lens; field-configurable via handheld wireless tool (WSREM, sold separately)
- 480V input for tap-off from three-phase 480V service common in industrial and large commercial buildings
- Durable matte black finish over die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets
Ideal For: Auto dealerships • Parking areas • Service drives • Loading zones • Wall pack replacement
UL listed for wet locations, IP66-rated against dust and water ingress, cold-start rated to -40°F, and built to the 3G ANSI C136.31 vibration standard.
