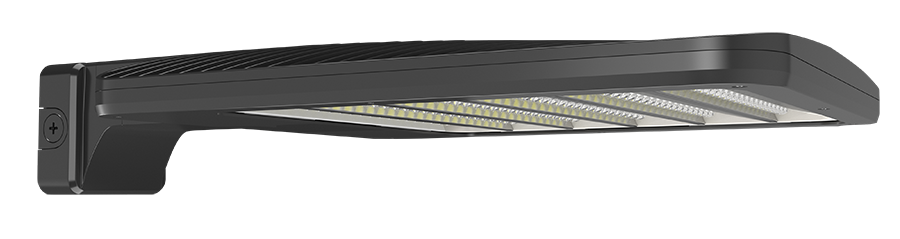

RAB ALED 170W-220W-260W At 5000K Wall Mount Bronze (ALEDLATWM)

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. The AT (automotive type) distribution puts a deliberate hot spot in front of the fixture with wide side-to-side throw — well-suited to lighting the outer row of a dealership lot or a broad service apron from a building face.

The 5000K cool white output runs on any 120–277V circuit with 0–10V dimming down to 10%, and comes in a durable bronze finish. Wattage is field-adjustable in three discrete steps — 260W, 220W, or 170W (factory default 260W) — letting installers dial output to match the site without swapping fixtures, and it is a direct one-for-one replacement for a 1,000W metal halide.

Features

• Field-adjustable wattage in three discrete steps: 260W, 220W, or 170W (factory default 260W)
• Lumen output: 25,151 lm at 170W, 32,304 lm at 220W, 37,412 lm at 260W
• 5000K cool white at 84 CRI
• 120–277V multi-tap input, 0–10V dimming down to 10%
• AT (automotive type) distribution — wide throw with a deliberate hot spot to spotlight the front row of vehicles
• Die-cast aluminum housing with polycarbonate lens and silicone gaskets
• 10 kV line-to-line / 6 kV line-to-ground surge protection
• 100,000-hour L70 LED lifespan
• Wall mount for direct attachment to a vertical building surface

Ideal For: Car Dealership Lots • Auto Service Centers • Commercial Parking • Loading Zones • Municipal Grounds

UL listed for wet locations and IP66-rated for full protection against dust and water. Cold-start rated to –40°F and a maximum ambient of 104°F. 3G vibration rated per ANSI C136.31.
