RAB ALED 170W-220W-260W At 5000K With Slipfitter White (ALEDLATSFW)

RAB ALED 170W-220W-260W At 5000K With Slipfitter White (ALEDLATSFW)

SKU ALEDLATSFW
by RAB
$1,467.00 - $1,467.00
$1,467.00
Backorder: Usually Ships in 4-7 Days
Product Description

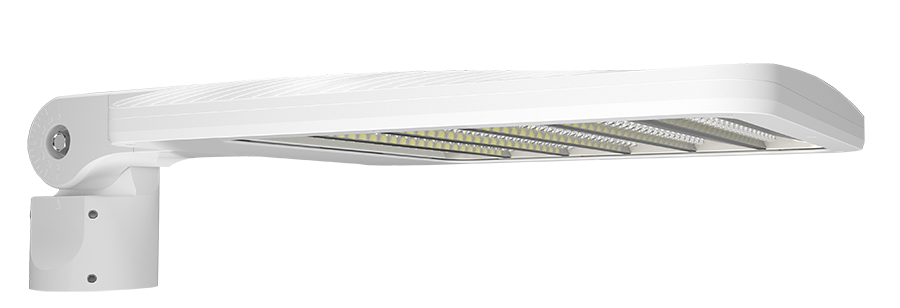

This large ALED area light delivers dealership-focused illumination with an AT (automotive type) distribution — a wide throw with a deliberate hot spot that spotlights the front row of vehicles while keeping backspill toward the street to a minimum. The 2-3/8" slipfitter mount fits standard round pole tenons for straightforward pole installation.

The 5000K cool white output runs on any 120–277V circuit with 0–10V dimming down to 10%, and comes in a durable white finish. Wattage is field-adjustable in three discrete steps — 260W, 220W, or 170W (factory default 260W) — letting installers dial output to match the site without swapping fixtures, and it is a direct one-for-one replacement for a 1,000W metal halide.

Features

  • Field-adjustable wattage in three discrete steps: 260W, 220W, or 170W (factory default 260W)
  • Lumen output: 25,151 lm at 170W, 32,304 lm at 220W, 37,412 lm at 260W
  • 5000K cool white at 84 CRI
  • 120–277V multi-tap input, 0–10V dimming down to 10%
  • AT (automotive type) distribution — wide throw with a deliberate hot spot to spotlight the front row of vehicles
  • Die-cast aluminum housing with polycarbonate lens and silicone gaskets
  • 10 kV line-to-line / 6 kV line-to-ground surge protection
  • 100,000-hour L70 LED lifespan
  • Slipfitter mount fits a 2-3/8" round pole tenon; stainless steel mounting hardware

Ideal For: Car Dealership Lots • Auto Service Centers • Commercial Parking • Loading Zones • Municipal Grounds

UL listed for wet locations and IP66-rated for full protection against dust and water. Cold-start rated to –40°F and a maximum ambient of 104°F. 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 25151/32304/37412 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
