Product Description

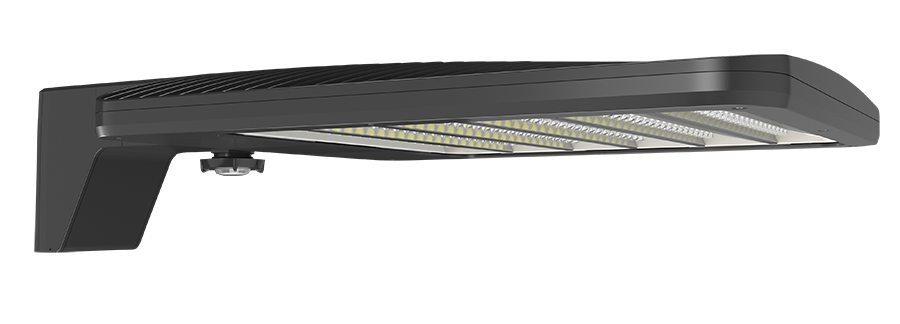

This large ALED area light mounts to a pole with a universal arm that fits standard drilling patterns spaced 1 inch to 3 inch on center, with a round-pole adapter plate included in the box. Slide-and-lock hardware speeds installation, and the dealership-tuned optics throw a wide pattern with a defined hot spot along the front row of cars while pulling light back from adjacent streets. Field-adjustable wattage covers three output steps — 170W, 220W, or 260W — from a single catalog number, so one spec handles multiple pole heights and light-level zones on the same site.
At the factory-default 260W step, it puts out 37,412 lumens and replaces a 1,000-watt metal halide fixture. This SKU pairs a dedicated 480V driver with a WattStop multi-level motion sensor and a 40-foot lens, tuned for tall-pole installs. Settings adjust wirelessly with RAB's WSREM handheld configuration tool (sold separately), and the driver dims to 10% via 0-10V controls. Comes in bronze.
Features
- Field-adjustable wattage: 170W / 220W / 260W (factory default 260W)
- Field-adjustable output: 25,151 / 32,304 / 37,412 lumens
- Efficacy up to 146.9 lumens per watt; 5000K cool white, 84 CRI
- Dealership-tuned distribution with a defined front-row hot spot and controlled backspill
- Universal arm with 1" to 3" on-center hole spacing; round-pole adapter included
- Dedicated 480V driver, 0-10V dimming to 10%
- WattStop multi-level motion sensor with 40-foot lens (WSREM handheld configuration tool sold separately)
- Die-cast aluminum housing, polycarbonate lens, bronze finish
- 100,000-hour L70 lifespan; equivalent to a 1,000W metal halide fixture
- Surge protection: 10 kV line-to-line, 6 kV line-to-ground
Ideal For: Auto Dealerships • Vehicle Sales Lots • Front-Row Displays • Parking Lots • Distribution Yards
UL Listed for wet locations, IP66 rated, cold-start to -40°F, and rated for a 104°F max ambient. 3G vibration rating per ANSI C136.31.
