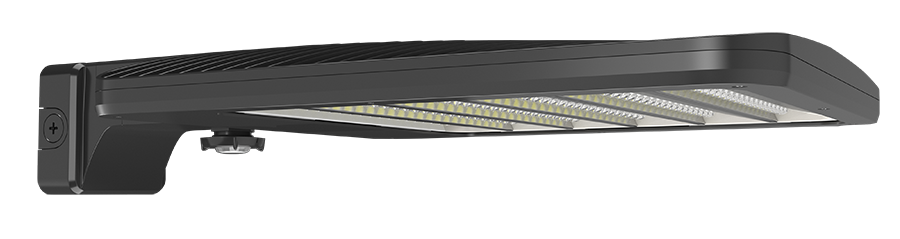

RAB ALED 170W-220W-260W Type V 4000K 480V Wall Mount WS Sensor 40 Foot Lens Bronze (ALEDL5TWMN/480/WS4)

RAB ALED 170W-220W-260W Type V 4000K 480V Wall Mount WS Sensor 40 Foot Lens Bronze (ALEDL5TWMN/480/WS4)

SKU ALEDL5TWMN/480/WS4
by RAB
$1,720.00 - $1,720.00
$1,720.00
Backorder: Usually Ships in 4-7 Days
Product Description

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage lets one fixture cover 170W, 220W, or 260W duty from the factory-preset 260W setting, delivering up to 41,273 lumens at 4000K neutral white with up to 84 CRI color rendering — enough output to replace a 1,000W metal halide fixture while using roughly a quarter of the energy.

A die-cast aluminum housing with high-temperature silicone gaskets and a polycarbonate lens carries an IP66 rating for dust and heavy rain, and the Type V distribution spreads a symmetric 360° pattern that suits open lots as well as building perimeters. The 480V driver includes 0-10V dimming down to 10%, standard 10kV/6kV surge protection, and cold-weather starting to -40°F — a fit for facilities running high-voltage building service.

An integrated WattStopper occupancy sensor with a 40-foot lens handles automatic on/off switching from the fixture itself — no separate control wiring, no ceiling-mounted sensor. The extended lens reaches across wider zones like full parking rows, larger service yards, and open storage areas.

Features

  • Wattage: Field-selectable 170W / 220W / 260W (factory default 260W)
  • Lumen Output: 28,481 / 36,890 / 41,273 lumens (at 170W / 220W / 260W)
  • Color Temperature: 4000K neutral white
  • Color Rendering: 83/83/84 CRI
  • Efficacy: Up to 166 lm/W
  • Distribution: Type V — symmetric 360° pattern, B5 U0 G3 BUG rating
  • Input Voltage: 480V, 0-10V dimming to 10%
  • Control Option: Integrated WattStopper occupancy sensor, 40-foot lens
  • Housing: Die-cast aluminum with polycarbonate lens and silicone gaskets
  • Environmental Rating: IP66, suitable for wet locations
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Cold-Weather Rating: Starts down to -40°F
  • Rated Life: 100,000 hours (L70)
  • Mount: Wall mount, integral bracket
  • EPA: 0.55 (single fixture)
  • Weight: 26.4 lbs
  • Finish: Bronze

Ideal For: Parking Lots • Loading Docks • Service Drives • Warehouses • Building Perimeters • Wall-Pack Replacement

UL Listed for wet locations.

Frequently Asked Questions
How bright is this product?
This product offers 28481/36890/41273 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
