Product Description

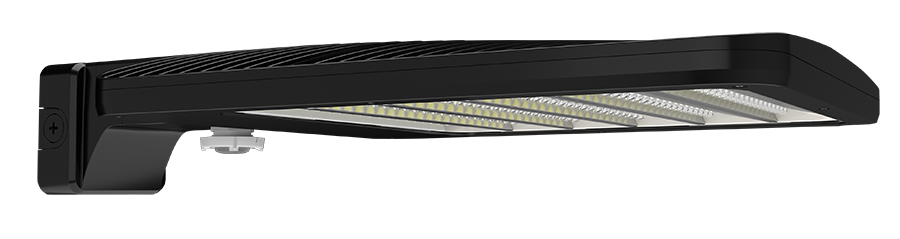

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled Type V light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage covers three output steps — 170W, 220W, or 260W — from one catalog number, so a single spec handles multiple perimeter locations at different mounting heights.
At the factory-default 260W step, it puts out 40,311 lumens and replaces a 1,000-watt metal halide fixture. This SKU pairs a dedicated 480V driver with a WattStop multi-level motion sensor and a 40-foot lens, tuned for tall-pole installs. Settings adjust wirelessly with RAB's WSREM handheld configuration tool (sold separately), and the driver dims to 10% via 0-10V controls. Comes in black.
Features
- Field-adjustable wattage: 170W / 220W / 260W (factory default 260W)
- Field-adjustable output: 27,100 / 34,807 / 40,311 lumens
- Efficacy up to 160.2 lumens per watt; 5000K cool white, 84 CRI
- Type V distribution — wide 360° pattern for large open areas
- Direct wall mount
- Dedicated 480V driver, 0-10V dimming to 10%
- WattStop multi-level motion sensor with 40-foot lens (WSREM handheld configuration tool sold separately)
- Die-cast aluminum housing, polycarbonate lens, black finish
- 100,000-hour L70 lifespan; 5° tilt adjustment increments
- Surge protection: 10 kV line-to-line, 6 kV line-to-ground
Ideal For: Parking Areas • Loading Docks • Service Drives • Building Perimeters • Wall Pack Replacement
UL Listed for wet locations, IP66 rated, cold-start to -40°F, and rated for a 104°F max ambient. 3G vibration rating per ANSI C136.31.
