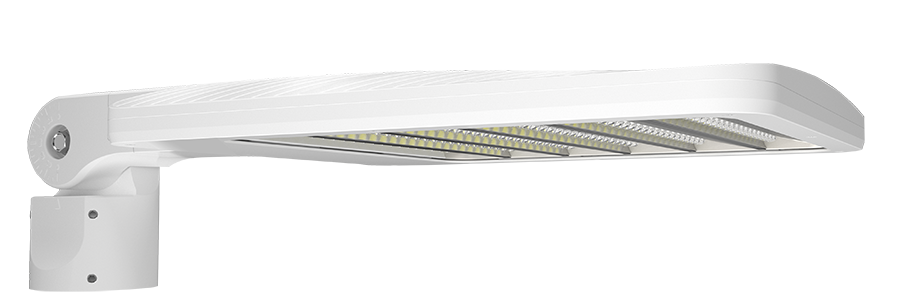

RAB ALED 170W-220W-260W Type V 5000K With Slipfitter White (ALEDL5TSFW)

RAB ALED 170W-220W-260W Type V 5000K With Slipfitter White (ALEDL5TSFW)

SKU ALEDL5TSFW
by RAB
$1,467.00 - $1,467.00
$1,467.00
Backorder: Usually Ships in 4-7 Days
Product Description

This large ALED area light mounts to a 2-3/8 inch slipfitter atop a pole tenon or bullhorn, casting a wide Type V pattern across parking lots, corporate campuses, and retail centers. Field-adjustable wattage covers three output steps — 170W, 220W, or 260W — from a single catalog number, so one fixture spec handles multiple pole heights and light-level zones on the same site.

At the factory-default 260W step, it puts out 40,311 lumens and replaces a 1,000-watt metal halide fixture. This SKU ships with a 120-277V multi-tap driver and dims to 10% via 0-10V controls. Comes in a durable white finish.

Features

  • Field-adjustable wattage: 170W / 220W / 260W (factory default 260W)
  • Field-adjustable output: 27,100 / 34,807 / 40,311 lumens
  • Efficacy up to 160.2 lumens per watt; 5000K cool white, 84 CRI
  • Type V distribution — wide 360° pattern for large open areas
  • 2 3/8" slipfitter mount with stainless steel hardware
  • 120-277V multi-tap driver, 0-10V dimming to 10%
  • Die-cast aluminum housing, polycarbonate lens, white finish
  • 100,000-hour L70 lifespan; 5° tilt adjustment increments
  • Surge protection: 10 kV line-to-line, 6 kV line-to-ground

Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Auto Dealerships • Distribution Yards

UL Listed for wet locations, IP66 rated, cold-start to -40°F, and rated for a 104°F max ambient. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 27100/34807/40311 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
