Product Description

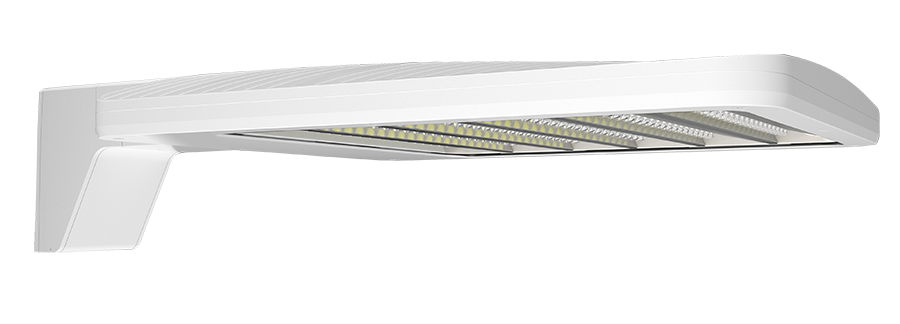

This large ALED area light mounts to a horizontal arm for pole-top or wall-arm installation, throwing broad, uniform light across parking lots, corporate parks, and open commercial sites from height. It is a direct LED replacement for a 1,000-watt metal halide fixture, delivering equivalent site coverage while using far less energy. Wattage is field-adjustable in three discrete steps — 260, 220, or 170 watts — so a single unit can be dialed to the target foot-candles on site without swapping fixtures.
The 480V driver suits sites already wired for 480V distribution — typical of larger commercial parking structures, industrial yards, and warehouse campuses — and includes 0–10V dimming wiring. An ANSI C136.41 7-pin receptacle on top of the housing accepts a twist-lock photocell or a wireless control node from most major networked-lighting platforms, so the fixture can be commissioned or upgraded to networked controls without opening the housing. Type V optics distribute a wide, uniform 360° pattern for even light across large open areas.
Features
- Field-adjustable output in three discrete steps: 260W / 220W / 170W (factory default 260W)
- Delivered lumens at 260 watts: 41,273 lm at 4000K, 83+ CRI
- 480V input, 0–10V dimming down to 10%
- ANSI C136.41 7-pin twist-lock receptacle for wireless control nodes and photocells
- 100,000-hour L70 rated LED lifespan
- Surge protection: 10 kV line-to-line, 6 kV line-to-ground
- IP66 rated die-cast aluminum housing with polycarbonate lens
- Universal mounting arm fits 1" to 3" hole spacing; round-pole adapter plate included as standard
- White durable powder-coat finish
- 10-year no-compromise RAB warranty
Ideal For: Parking Lots • Corporate Parks • Retail Sites • Warehouse Yards • Metal Halide Fixture Replacements
UL Listed for wet locations, IP66 rated for dust and water ingress, cold-start capable to -40°F, and rated for ambient operation up to 104°F. Certified to the 3G ANSI C136.31 vibration standard for pole-top and structure-mounted installations.
