Product Description

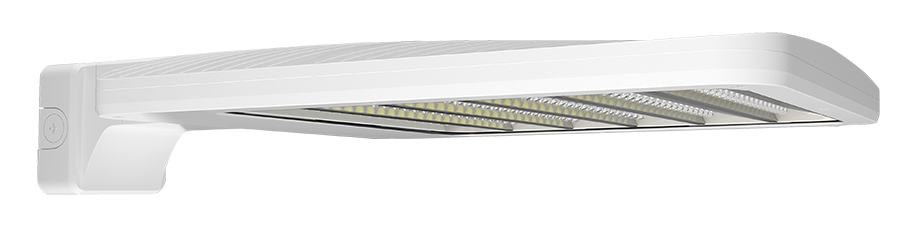

This large ALED area light from RAB mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking lots, service drives, and loading zones without requiring a pole. Its Type IV distribution casts a wide semicircular pool of light outward from the mounting surface, ideal for perimeter coverage along building facades and property boundaries. Field-adjustable wattage lets a single fixture cover three output levels — 260W, 220W, or 170W — chosen at install with a simple switch, so the same fixture can serve high-traffic lots or lower-priority walkways with the right amount of light for the job.
Wired for 480V input, this version matches the higher-voltage service common on industrial campuses and large commercial sites, cutting wire gauge and voltage drop over long runs from the panel. A 7-pin ANSI C136.41 receptacle on top accepts an external control node, so the fixture is ready to drop into a networked lighting or smart-controls system down the road without swapping hardware.
Features
- Field-adjustable wattage: 260W, 220W, or 170W selectable on the fixture (factory default 260W)
- Delivers 26858/34788/38921 lm at the three wattage steps
- 4000K neutral white, 84 CRI
- Type IV distribution for wide semicircular coverage along walls and perimeters
- 480V input for high-voltage commercial and industrial service
- 7-pin ANSI C136.41 receptacle for external control node (node sold separately)
- Replaces up to a 1,000-watt metal halide fixture
- 100,000-hour L70 rated LED life
- 10 kV line-to-line, 6 kV line-to-ground surge protection
- Die-cast aluminum housing with polycarbonate lens, white finish
Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Wall Pack Replacement
UL Listed for wet locations. IP66 rated for full protection against dust and water ingress. Cold-start rated to -40°F, with a maximum ambient temperature of 104°F. 3G vibration rated per ANSI C136.31 for use in high-vibration environments.
