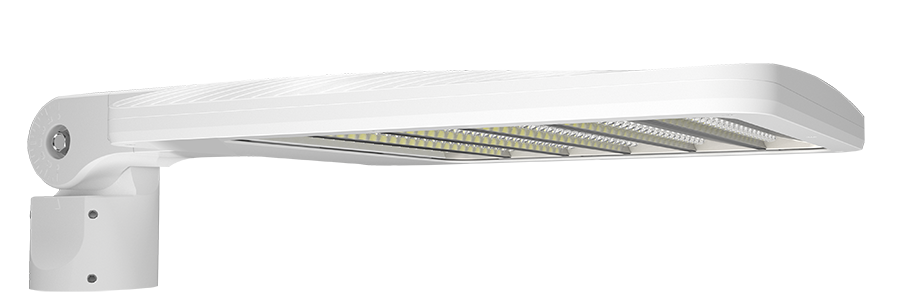

RAB ALED 170W-220W-260W Type IV 5000K With Slipfitter White (ALEDL4TSFW)

RAB ALED 170W-220W-260W Type IV 5000K With Slipfitter White (ALEDL4TSFW)

SKU ALEDL4TSFW
by RAB
$1,467.00 - $1,467.00
$1,467.00
Backorder: Usually Ships in 4-7 Days
Product Description

This large ALED area light slides onto a 2-3/8 inch slipfitter tenon at the top of a pole, giving parking lots, service drives, and commercial perimeters broad Type IV coverage that puts light on the pavement and keeps it off adjacent properties.

Field-adjustable wattage lets a contractor set the fixture to 170, 220, or 260 watts on site, so one fixture can be tuned to the pole height and lumen target of the property. At the top setting it replaces a 1,000-watt metal halide fixture while using roughly a quarter of the energy.

Features

  • Field-adjustable output: 170W / 220W / 260W (factory default 260W)
  • Lumen output: 25,350 / 32,559 / 37,708 lumens across the three power settings
  • 5000K cool white, 84 CRI
  • Equivalent to a 1,000W metal halide fixture
  • Type IV distribution for building-side and parking-perimeter throw
  • 0-10V dimmable to 10 percent
  • 120-277V multi-tap driver
  • 2 3/8" slipfitter mount with stainless steel hardware
  • Die-cast aluminum housing with a polycarbonate lens; white finish
  • 100,000-hour L70 LED lifespan
  • 10-year, no-compromise warranty

Ideal For: Parking Lots • Service Drives • Campus Walkways • Commercial Perimeters • Storage Yards • Distribution Centers

UL Listed for wet locations. IP66 rated for dust and water. Cold-start to -40°F, max ambient of 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 25350/32559/37708 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
