Product Description

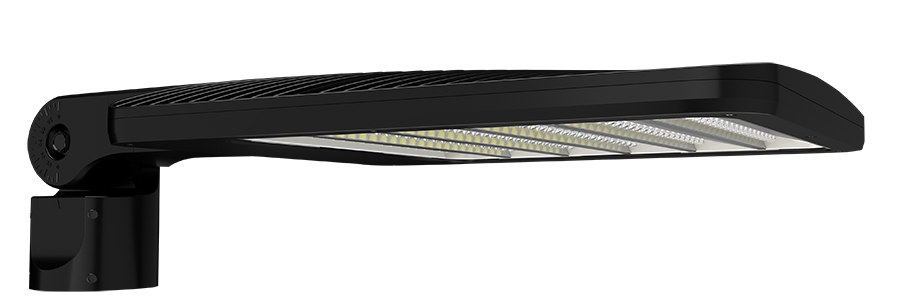

This large ALED area light mounts to a 2-3/8 inch horizontal tenon with its integrated slipfitter, throwing a Type IV forward-and-side pattern across parking areas, service drives, and the perimeter of large commercial sites.
Field-adjustable output lets one fixture cover 170, 220, or 260 watts, set on the fixture during installation to match each pole's lumen target and cut inventory down to a single SKU. The 4000K neutral white renders faces and site colors naturally while still reading bright at parking-lot distances. The multi-volt driver accepts any line between 120 and 277 volts, so one SKU covers most standard commercial feeds. Finished in black, formulated for long-lasting color retention outdoors.
Features
- Field-selectable output: 170W, 220W, or 260W (factory default 260W)
- Delivers 25,506 / 32,692 / 37,726 lumens across the three wattage steps
- 4000K neutral white color
- Type IV IES distribution — forward throw with side coverage, good for building-perimeter and lot-edge mounting
- Replaces a 1,000-watt metal halide fixture
- 0-10V dimming standard, dims down to 10%
- 100,000-hour L70 rated LED lifespan
- 120-277V input
- IP66 rated against dust and water intrusion
- 3G vibration rating per ANSI C136.31
- Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets
- 2-3/8" slipfitter mount with stainless steel hardware
- Rotates in 5-degree increments for aiming
- Black finish
Ideal For: Parking Lots • Service Drives • Loading Zones • Commercial Perimeter Lighting • Wall Pack Replacement
UL Listed for wet locations, IP66 rated for dust and water, cold-start rated to -40°F, suitable for ambient temperatures up to 104°F, and built to a 3G ANSI C136.31 vibration standard.
