Product Description

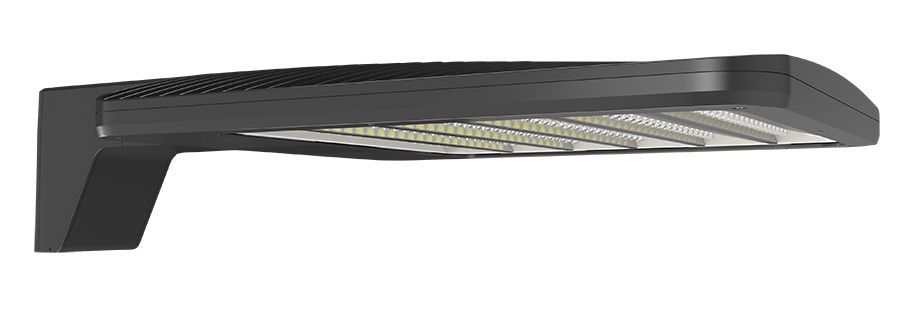

This large ALED area light mounts to a horizontal arm on a square or round pole, throwing broad Type IV distribution across parking lots, service drives, and perimeter walkways. It replaces a 1,000-watt metal halide fixture while using a fraction of the energy.
Field-adjustable wattage lets an installer set 170W, 220W, or 260W in three discrete steps — a single fixture covers three photometric targets without swapping hardware. At the factory-default 260W, this bronze fixture delivers 38,921 lumens of 4000K neutral-white light at 83 to 84 CRI, running on a dedicated 480V driver. The 0-10V dimming driver takes output down to 10% when a site controller calls for reduced levels overnight. An ANSI C136.41 7-pin twist-lock receptacle on top of the housing accepts external wireless controls and photocells sold separately.
Features
- Field-adjustable wattage: 260W, 220W, or 170W (factory-set at 260W)
- Delivers up to 38,921 lumens at the 260W setting
- 4000K color temperature at 83 to 84 CRI
- Type IV distribution engineered for perimeters and edge lighting
- Universal mounting arm accepts 1" to 3" hole spacing; round pole adapter included
- Dedicated 480V driver with 0-10V dimming to 10%
- Bronze die-cast aluminum housing with polycarbonate lens
- 10 kV line-to-line, 6 kV line-to-ground surge protection
- ANSI C136.41 7-pin twist-lock receptacle for external wireless controls and photocells (sold separately)
- Replaces a 1,000-watt metal halide fixture
- 100,000-hour L70 lifespan backed by RAB's 10-year, no-compromise warranty
Ideal For: Parking Lots • Service Drives • Loading Zones • Perimeter Walkways • Wall Pack Replacement
UL Listed for wet locations, IP66 rated against dust and water, cold-start rated to -40°F, and built for ambient temperatures up to 104°F. Carries a 3G vibration rating per ANSI C136.31 for pole and bracket applications.
