Product Description

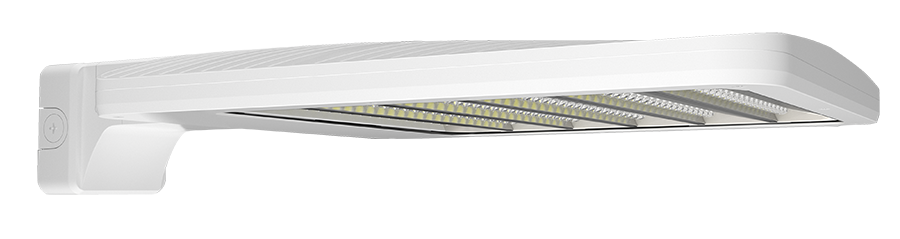

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. The Type III optic pushes the beam outward along the mounting line, and three field-selectable wattage steps — 170W, 220W, or 260W — let installers dial in output on the job site to match the layout.
This model wired for 480V input and ships in a white die-cast aluminum housing, and comes topped with an ANSI C136.41 7-pin receptacle that accepts wireless control nodes for remote dimming and network integration. At 5000K cool white with 84-85 CRI, output ranges from 25,663 lumens at 170W to 37,434 lumens at 260W, replacing a 1,000W metal halide fixture while using far less energy. The 0-10V dimming driver is standard and dims down to 10%.
Features
- Field-selectable wattage: 170W / 220W / 260W (factory default 260W)
- 5000k cool white, 84-85 CRI
- 480V input
- Lumen output: 25,663 / 33,140 / 37,434 lm across the three wattage steps
- Type III IES distribution for perimeter and roadway coverage
- ANSI C136.41 7-pin receptacle for wireless controls
- 0-10V dimming standard, dims to 10%
- Die-cast aluminum housing with polycarbonate lens; white finish
- 10kV line-to-line, 6kV line-to-ground surge protection
- 100,000-hour L70 LED lifespan
- 10-Year, No-Compromise Warranty
Ideal For: Parking Lots • Loading Docks • Service Drives • Warehouses • Wall Pack Replacement
UL Listed for wet locations, IP66-rated against dust and water, with a -40°F cold-start rating and a 104°F maximum ambient temperature. Meets the 3G ANSI C136.31 vibration rating for bridges, tunnels, and other high-vibration installations.
