Product Description

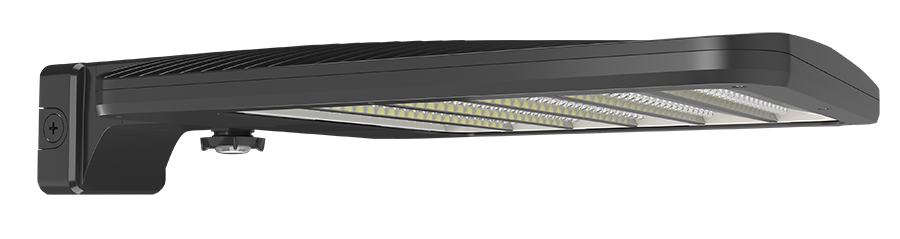

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled Type III light across parking areas, service drives, and loading zones without requiring a pole. It is a full area light configured for wall installation, not a wall pack — the same optics and output that pole-mounted ALEDs produce, aimed from the building face.
Wattage is field-adjustable at the fixture in three discrete steps — 170, 220, or 260 watts, with 260 watts as the factory default — so the same fixture covers a range of site conditions and can be dialed back after commissioning without swapping hardware. At the top step, output reaches 37,434 lumens at 138.1 lumens per watt, replacing a 1,000-watt metal halide with a fraction of the wattage. The 5000K cool color temperature delivers a crisp, high-visibility white that reads well against pavement and building facades. The 480V driver is built for 480-volt service, common on industrial and large commercial sites where the higher line voltage cuts amperage across long feeder runs. Dims to 10% on a 0-10V control circuit.
A factory-mounted Wattstop multi-level motion sensor sits under the housing with a 40-foot lens tuned for taller mounting heights — roughly 20 to 40 feet, the range most parking-lot poles fall in. The 180-degree detection field holds the fixture at reduced output until motion enters the zone, then ramps to full output for the duration of the event, cutting run-time energy without leaving the area dark.
Features
- Field-adjustable 170W/220W/260W output, factory default 260W
- Type III distribution, up to 37,434 lumens at 138.1 lm/W, 5000K cool white, 84/85/85 CRI
- Direct wall mount to vertical building surface
- 480V driver, 0-10V dimming to 10%
- Factory-mounted Wattstop multi-level motion sensor, 40-foot lens, 180° detection
- 10kV line-to-line and 6kV line-to-ground surge protection
- Die-cast aluminum housing with polycarbonate lens, durable bronze finish
- 100,000-hour L70 LED lifespan, 10-year no-compromise warranty
Ideal For: Building Perimeter Lighting • Loading Docks • Service Drives • Warehouse Facades • Wall Pack Replacement
UL Listed for wet locations, IP66 ingress-protected against dust and water, rated for cold starts down to -40°F and ambient operation up to 104°F, and tested to a 3G vibration rating per ANSI C136.31. Backed by RAB's 10-year no-compromise warranty.
