Product Description

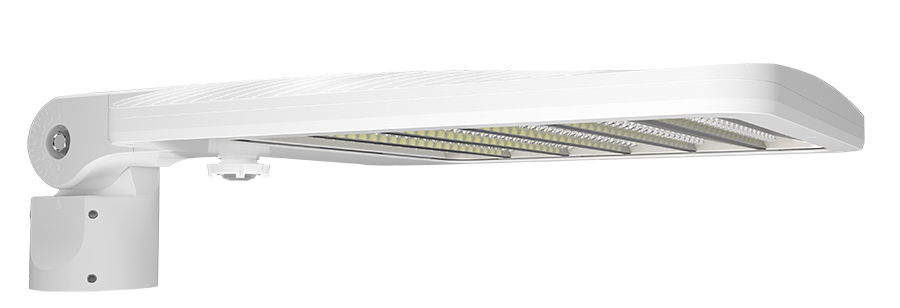

This large ALED area light drops onto a 2 3/8 inch slipfitter for tenon-mount installations — the standard fit for shoebox-style poles and mast-arm brackets already in the ground. Type III distribution throws light outward and to the sides to fill parking lots, roadways, and open service areas without wasting output straight down.
Wattage is field-adjustable at the fixture in three discrete steps — 170, 220, or 260 watts, with 260 watts as the factory default — so the same fixture covers a range of site conditions and can be dialed back after commissioning without swapping hardware. At the top step, output reaches 37,434 lumens at 138.1 lumens per watt, replacing a 1,000-watt metal halide with a fraction of the wattage. The 5000K cool color temperature delivers a crisp, high-visibility white that reads well against pavement and building facades. The 480V driver is built for 480-volt service, common on industrial and large commercial sites where the higher line voltage cuts amperage across long feeder runs. Dims to 10% on a 0-10V control circuit.
A factory-mounted Wattstop multi-level motion sensor sits under the housing with a 40-foot lens tuned for taller mounting heights — roughly 20 to 40 feet, the range most parking-lot poles fall in. The 180-degree detection field holds the fixture at reduced output until motion enters the zone, then ramps to full output for the duration of the event, cutting run-time energy without leaving the area dark.
Features
- Field-adjustable 170W/220W/260W output, factory default 260W
- Type III distribution, up to 37,434 lumens at 138.1 lm/W, 5000K cool white, 84/85/85 CRI
- 2 3/8" slipfitter mount with stainless steel hardware
- 480V driver, 0-10V dimming to 10%
- Factory-mounted Wattstop multi-level motion sensor, 40-foot lens, 180° detection
- 10kV line-to-line and 6kV line-to-ground surge protection
- Die-cast aluminum housing with polycarbonate lens, durable white finish
- 100,000-hour L70 LED lifespan, 10-year no-compromise warranty
Ideal For: Parking Lots • Roadways • Mast Arm Retrofits • Streetlight Poles • Commercial Sites
UL Listed for wet locations, IP66 ingress-protected against dust and water, rated for cold starts down to -40°F and ambient operation up to 104°F, and tested to a 3G vibration rating per ANSI C136.31. Backed by RAB's 10-year no-compromise warranty.
