Product Description

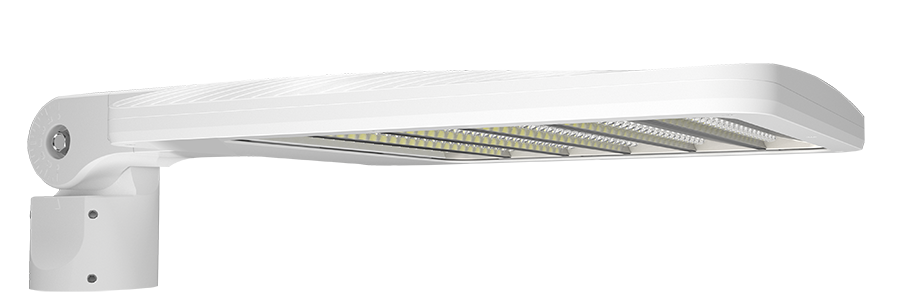

This large ALED area light drops onto a 2 3/8 inch slipfitter for tenon-mount installations — the standard fit for shoebox-style poles and mast-arm brackets already in the ground. Type III distribution throws light outward and to the sides to fill parking lots, roadways, and open service areas without wasting output straight down.
Wattage is field-adjustable at the fixture in three discrete steps — 170, 220, or 260 watts, with 260 watts as the factory default — so the same fixture covers a range of site conditions and can be dialed back after commissioning without swapping hardware. At the top step, output reaches 36,971 lumens at 138.1 lumens per watt, replacing a 1,000-watt metal halide with a fraction of the wattage. The 5000K cool color temperature delivers a crisp, high-visibility white that reads well against pavement and building facades. Standard multi-tap driver runs on 120-277 volts and dims to 10% on a 0-10V control circuit.
Features
- Field-adjustable 170W/220W/260W output, factory default 260W
- Type III distribution, up to 36,971 lumens at 138.1 lm/W, 5000K cool white, 84/85/85 CRI
- 2 3/8" slipfitter mount with stainless steel hardware
- 120-277V multi-tap driver, 0-10V dimming to 10%
- 10kV line-to-line and 6kV line-to-ground surge protection
- Die-cast aluminum housing with polycarbonate lens, durable white finish
- 100,000-hour L70 LED lifespan, 10-year no-compromise warranty
Ideal For: Parking Lots • Roadways • Mast Arm Retrofits • Streetlight Poles • Commercial Sites
UL Listed for wet locations, IP66 ingress-protected against dust and water, rated for cold starts down to -40°F and ambient operation up to 104°F, and tested to a 3G vibration rating per ANSI C136.31. Backed by RAB's 10-year no-compromise warranty.
