Product Description

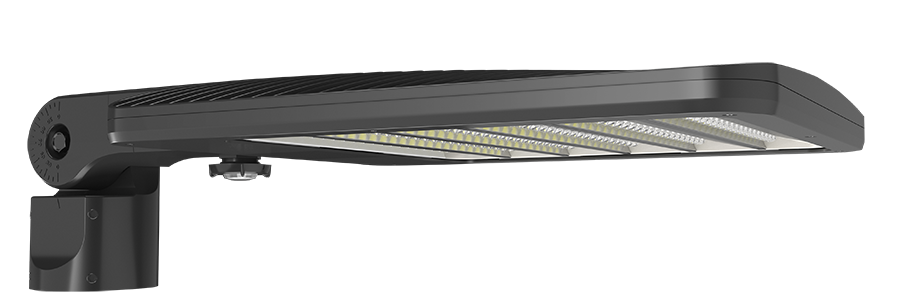

This large ALED area light mounts to a 2-3/8 inch slipfitter and puts out up to 38,288 lumens for parking lots, roadways, and other wide outdoor spaces where a strong, uniform pool of light is needed. Field-adjustable wattage lets you set the fixture on site to 170, 220, or 260 watts — it ships at the full 260W setting — and the Type III distribution throws light forward and to the sides, so it can be aimed from the perimeter of a lot back into the space it lights.
Wiring is set for 480V input, matching the high-voltage service common on industrial sites, large parking decks, and campus infrastructure. The 4000K neutral white output balances crispness with a slightly softer feel — a common choice for retail parking, mixed-use lots, and streetscapes where the fixture is visible to customers and tenants. A durable bronze finish coordinates with typical pole and site hardware and blends into most commercial exteriors.
An integrated WattStop occupancy sensor with a 40-foot detection lens is mounted to the fixture, so no add-on control module is required. The sealed, vandal-resistant lens covers a 180-degree viewing angle and reaches the longer detection distances needed at taller pole mounting heights on parking lots, roadways, and service drives.
Features
- 260W factory default with field-selectable 170W / 220W / 260W output on site
- Delivers up to 38,288 lumens at the 260W setting (approximately 145 lumens per watt)
- Replaces up to a 1,000W metal halide fixture, using a fraction of the energy
- Type III optical distribution — forward-throw pattern for perimeter-mounted parking, roadway, and area lighting
- 480V input for high-voltage service
- 0-10V dimming standard, dims down to 10%
- Integrated WattStop occupancy sensor with 40-foot detection lens (180-degree viewing angle)
- 100,000-hour L70 LED lifespan; 10 kV / 6 kV surge protection built in
- 2-3/8" slipfitter mount with stainless steel hardware; die-cast aluminum housing with polycarbonate lens
Ideal For: Parking Lots • Roadways • Loading Areas • Service Yards • Commercial Perimeter Lighting
UL Listed for wet locations, IP66-rated against dust and water, cold-starts to -40°F, and rated for 104°F maximum ambient with a 3G ANSI C136.31 vibration rating for pole-mount stability.
