Product Description

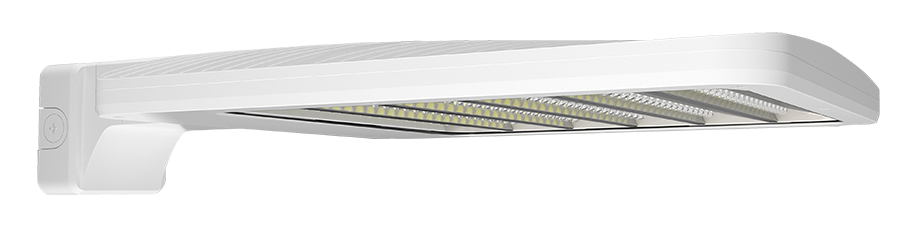

This large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled Type II light across parking areas, service drives, and loading zones without requiring a pole. It runs on 260 watts and puts out 36,458 lumens, with field-adjustable settings that let an installer step the output down to 220 watts (31,480 lumens) or 170 watts (24,510 lumens) at commissioning to match site loads.
The die-cast aluminum housing comes in bronze, formulated for long-lasting color, and stays sealed with high-temperature silicone gaskets and a polycarbonate lens against water and dust. Efficacy reaches 144.4 lumens per watt at the 170-watt step, and the Type II distribution spreads light along the wall face for even coverage on wide walkways, ramps, and building perimeters. Sized to replace a 1,000-watt metal halide fixture.
Features
- 260W / 220W / 170W field-adjustable output, factory default 260W
- 36,458 / 31,480 / 24,510 lumens at 5000K cool white, 84-85 CRI
- Type II distribution for wall-face coverage of parking areas and walkways
- 120-277V input, 0-10V dimming standard, dims to 10%
- 10 kV line-to-line / 6 kV line-to-ground surge protection
- Die-cast aluminum housing, polycarbonate lens, bronze finish
- Direct wall-mount installation, no pole required
- 100,000-hour L70 LED life
Ideal For: Parking Lots • Service Drives • Loading Docks • Warehouse Exteriors • Building Perimeters
UL Listed for wet locations, IP66-rated against dust and water. Rated for cold-weather starting to -40°F and operation at up to 104°F ambient. 3G vibration rating per ANSI C136.31.
