Product Description

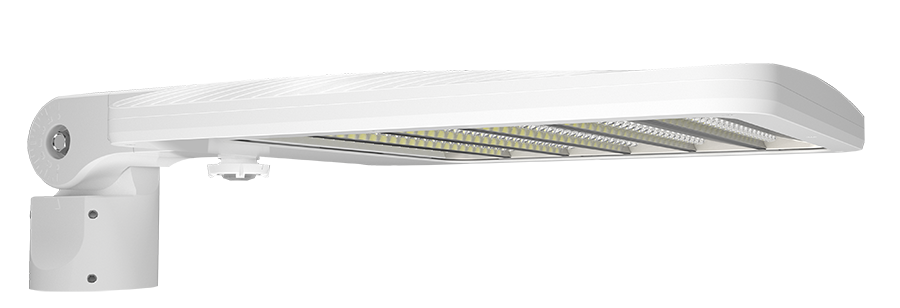

This large ALED area light installs on a 2-3/8 inch slipfitter tenon at the top of a parking-lot or roadway pole, and its output is set on site — the driver has three field-selectable steps at 170, 220, and 260 watts (factory default 260), so one fixture covers three lumen packages without swapping the head. Depending on the step, it puts out 24,510 to 36,458 lumens, replacing a 1,000-watt metal halide using only a fraction of the energy.
The Type II optic throws light in a long, narrow pattern that follows the length of the roadway or parking row — the distribution most driveways, perimeter walkways, and travel lanes are laid out to match. A 5000K cool color renders pavement, signage, and vehicle colors sharply, and the die-cast aluminum housing comes in white for a clean read against light-colored poles and canopies.
Features
- 480V input, 50/60 Hz
- Integrated WattStopper multi-level motion sensor tuned for 40-foot mounting heights; 180° detection zone with vandalproof sealed lens
- 170W / 220W / 260W field-selectable output (factory default 260W); delivers 24,510 / 31,480 / 36,458 lumens
- Efficacy of 144.4 / 139.5 / 136.3 lm/W depending on the step; replaces a 1,000W metal halide
- 5000K cool color temperature; 84-85 CRI
- Type II distribution for roadside and parking-row layouts
- 0-10V dimming standard; dims down to 10%
- 10 kV line-to-line and 6 kV line-to-ground surge protection
- Die-cast aluminum housing with polycarbonate lens
- 100,000-hour L70 rated lifespan; 10-year, no-compromise warranty
- 2-3/8" slipfitter mount with stainless steel hardware; tilts in 5° increments
- Textured white finish for a clean look on poles and canopies
Ideal For: Parking Lots • Roadway Lighting • Industrial Yards • Commercial Perimeters • Campus Driveways
UL Listed for wet locations. IP66 rated against dust and water. Cold-starts down to -40°F and rated for ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31.
