Product Description

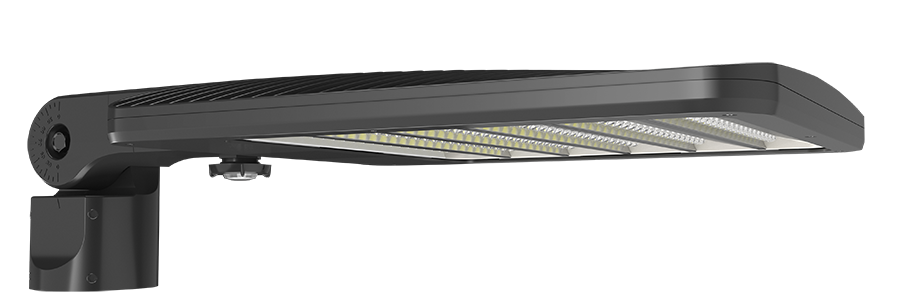

This slipfitter-mount area light replaces a 1,000W metal halide fixture and steps between 170, 220, and 260 watts on install — one head, three light levels, no hardware swap.
Neutral 4000K light and Type II distribution throw an even, elongated pattern along roadways, entrance drives, and wide walkways, putting out 25,826 / 33,451 / 37,425 lumens across the three wattage steps at 83–84 CRI. An integrated WattStopper motion sensor tuned for 40-foot mounting heights brings the fixture up to full output when it detects movement and eases it back down when the area clears, and the 480V driver suits high-voltage industrial pole circuits. Comes in bronze, dark enough to blend into most site poles.
Features
- Field-adjustable output: 170W, 220W, or 260W (set on install, factory default 260W)
- 4000K neutral white; 25,826 / 33,451 / 37,425 lumens at 170W / 220W / 260W; 83–84 CRI
- Type II distribution shaped for roadways, entrance drives, and wide walkways
- Fits any standard 2-3/8" slipfitter with stainless steel hardware; rotates in 5° increments
- 480V driver for high-voltage industrial pole circuits; 0–10V dimming standard, dims down to 10%
- Integrated WattStopper multi-level motion sensor with 180° detection, tuned for 40-foot mounting heights; configurable with the handheld WSREM tool
- 10 kV line-to-line, 6 kV line-to-ground surge protection
- Die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
- 100,000-hour rated LED life; 10-year no-compromise warranty
Ideal For: Roadways • Parking lot perimeters • Entrance drives • Wide walkways • Bike paths
UL Listed for wet locations, IP66 sealed, cold-start rated to -40°F, max ambient 104°F, and built to a 3G ANSI C136.31 vibration rating.
