Product Description

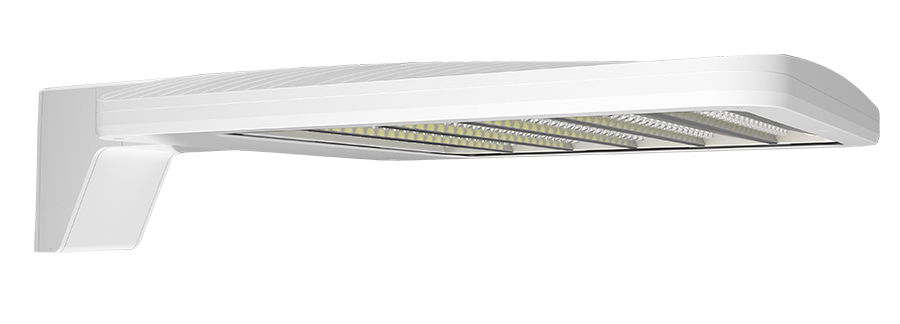

This ALED field-adjustable area light spreads Type II distribution across wide walkways, roadside runs, ramps, and access paths. Output selects on the fixture between 260 watts, 220 watts, and 170 watts (factory default 260W), with 4000K neutral white LEDs delivering up to 37,425 lumens — enough to replace a 1,000-watt metal halide fixture using far less energy.
Wired for 480V input, the fixture pairs 0-10V dimming down to 10% with a 7-pin ANSI C136.41 receptacle on top that accepts wireless control modules for scheduling, dimming, or utility metering. The white die-cast aluminum housing pairs with a universal mounting arm that fits hole-spacing patterns from 1 inch to 3 inches on center, with a round pole adapter plate included in the box.
Features
- Field-adjustable output: 260W, 220W, or 170W, with 260W as the factory default
- Type II IES distribution for wide roadside, walkway, and ramp coverage
- Up to 37,425 lumens at 141.9 lumens per watt on the 260W setting
- Replaces a 1,000W metal halide fixture
- 4000K neutral white LEDs; 84-85 CRI
- 100,000-hour L70 LED lifespan
- 0-10V dimming standard, dims to 10%
- 10 kV line-to-line and 6 kV line-to-ground surge protection
- Wired for 480V input
- Universal mounting arm compatible with 1" to 3" on-center hole spacing; round pole adapter plate included
- 7-pin ANSI C136.41 receptacle accepts wireless control modules
Ideal For: Parking lots • Access roads • Walkways • Ramps • Perimeter lighting
This fixture is UL Listed for wet locations, IP66 rated for dust and water, cold-starts at -40°F, operates up to 104°F ambient, and carries a 3G ANSI C136.31 vibration rating.
