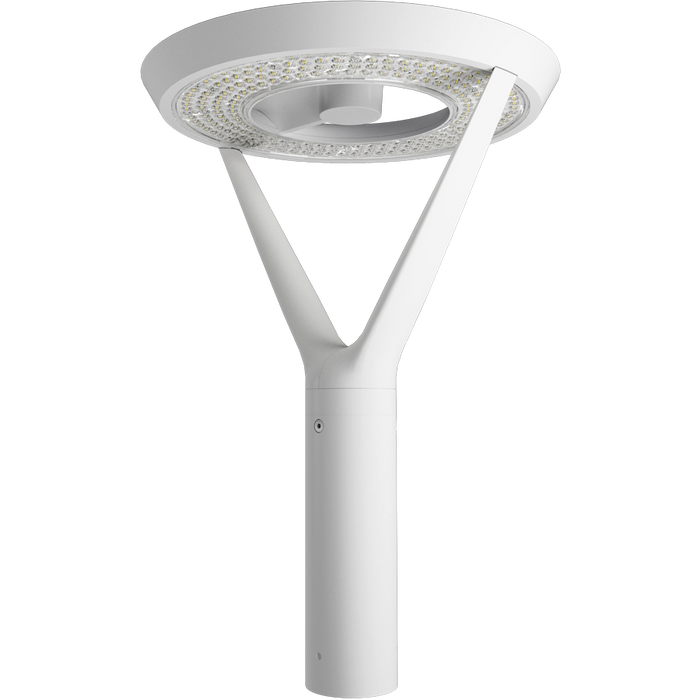

RAB AL5 Architectural Post-Top Area Light Round Wattage/CCT Selectable 120W/60W/30W 3000K/4000K/5000K 120-277V Type V Wide Twistlock Photocell White (AL5W/PCTA)

The RAB AL5 post-top area light delivers wide Type V distribution across parking lots, campus paths, and corporate properties, sized to mount on a 2-3/8 inch tenon or 4 inch pole. Field-adjustable wattage (30W / 60W / 120W) and field-selectable color temperature (3000K / 4000K / 5000K) let one fixture cover a range of brightness and ambience needs, with a factory-default 60W at 4000K ready out of the box.

This round housing comes in white on a 120-277V multi-tap driver, with a factory-fitted twistlock photocell-ready arm that accepts 3-, 5-, or 7-pin photocells (sold separately).

Features

• Field-adjustable output and color temperature set on the fixture: 30W, 60W, or 120W and 3000K, 4000K, or 5000K (factory-set at 60W and 4000K)
• 4,575–17,208 lumens with efficacy up to 159.4 lm/W and 83–86 CRI
• 100,000-hour L70 rated lifespan with Type V wide distribution (BUG rating B3 U0 G1)
• 0-10V dimming down to 10% with dim-to-off, plus 10 kV surge protection (L-L and L/N-G)
• Die-cast aluminum housing with a frosted polycarbonate lens
• Twistlock photocell-ready arm accepts 3-, 5-, or 7-pin photocells (sold separately)

Ideal For: Parking lots • Corporate campuses • Retail sites • School grounds • Municipal properties

UL listed for wet locations at IP65, cold-start rated to -40°F with a 104°F maximum ambient, and carries a 3G vibration rating per ANSI C136.31.
