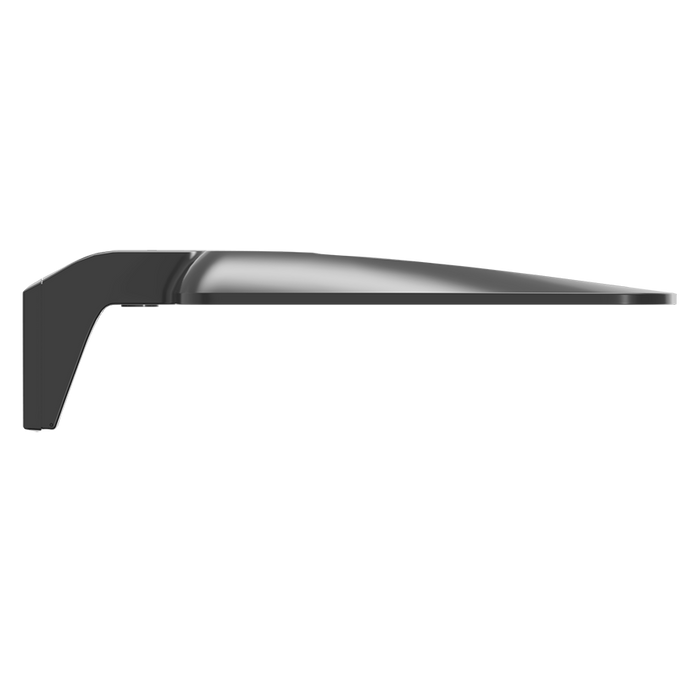

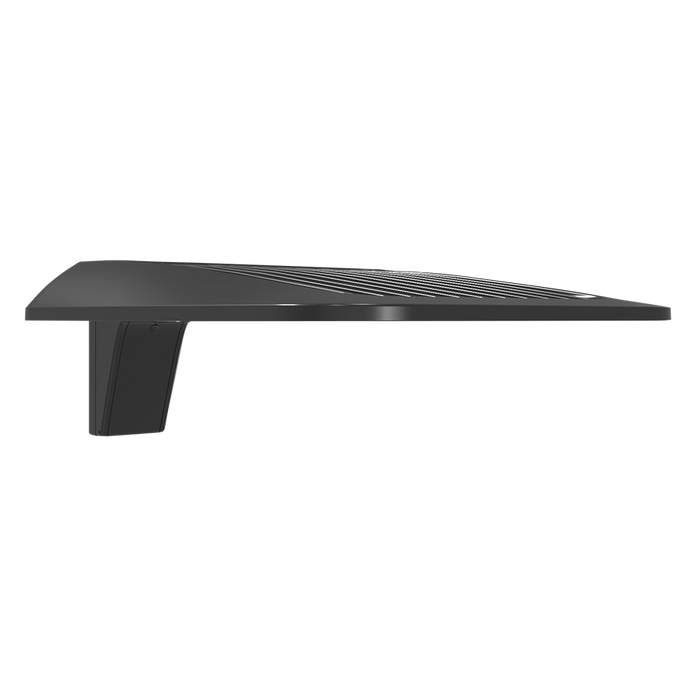

RAB LED Medium Area Light Type III Wattage/CCT Selectable 150W/125W/100W 3000K/4000K/5000K 480V Pole Mount Bronze (A34T3M/480)

RAB LED Medium Area Light Type III Wattage/CCT Selectable 150W/125W/100W 3000K/4000K/5000K 480V Pole Mount Bronze (A34T3M/480)

SKU A34T3M/480
by RAB
$510.00 - $510.00
$510.00
Backorder: Usually Ships in 4-7 Days
Product Description

Parking lots, campus roadways, and industrial yards get broad, even coverage from this mid-output LED area light. It puts out 15,817–23,601 lumens through a Type III optic that pushes light forward and outward, so one pole reaches deep into the lot instead of pooling straight down.

The housing, lens frame, and mounting arm are die-cast aluminum with a polymer-formulated finish tuned for outdoor UV exposure and salt-air corrosion. Bronze powder-coat finish tempers the fixture's daytime profile against poles, siding, and landscaping. A clear polycarbonate lens seals the LED chamber against dust, water, and impact, and a 10 kV surge suppressor sits in-line with the driver to guard against nearby lightning strikes and utility transients.

Features

  • Field-selectable wattage: 150W, 125W, or 100W (125W factory default)
  • Field-selectable color temperature: 3000K, 4000K, or 5000K (4000K factory default)
  • 15,817–23,601 lumens with 152.3-176 lumens per watt efficacy
  • 82-84 CRI color rendering
  • Type III optical distribution for parking lots, roadways, and general area coverage
  • 0-10V dimming standard, dims down to 10% output
  • 480V dedicated-circuit driver
  • 100,000-hour rated LED life (L70)
  • Die-cast aluminum housing in bronze finish
  • IP65 rated against dust and water ingress
  • Integrated photocell with on/off switching
  • 10 kV surge suppressor
  • Fixture weight: 16.4 lbs

Ideal For: Parking Lots • Roadways • Campus Perimeters • Industrial Yards • Municipal Lots

UL Listed for wet locations, with an IP65-rated seal against dust and water. Cold-start capable down to -40°F (-40°C) and rated for continuous operation in ambient temperatures up to 104°F (40°C). 2G vibration rating. Wired for a dedicated 480V circuit. A universal mounting arm ships in the box and drills to pole hole patterns from 1 inch to 5-1/2 inch center-to-center, with a round-pole adapter plate included so no extra parts are needed for the common pole diameters. Round poles must be at least 4 inches across to mount the fixture at a 90° orientation.

Frequently Asked Questions
What color temperature is this product?
This product offers 3000-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is wet location rated and can be used in areas with direct exposure to rain or water including outdoor applications.
Is this product UL listed?
This product is UL Listed meaning it has been tested and certified by Underwriters Laboratories to meet established safety standards.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
