Product Description

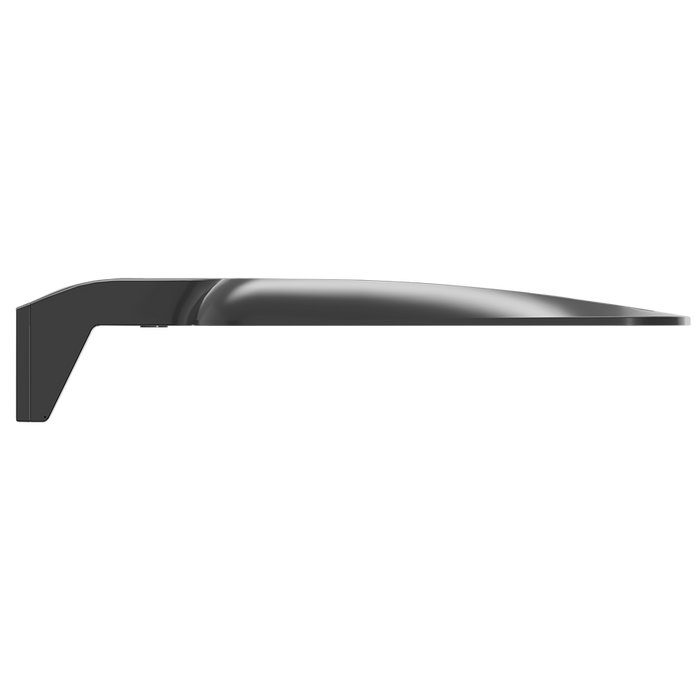

This field-adjustable T3 area light gives a project team one fixture that covers three wattage points and three color temperatures — the driver ships at 200W and 4000K, but a switch on the fixture drops output to 150W or lifts it to 250W, and a second switch swaps color between 3000K, 4000K, and 5000K. Output tops out at 40,574 lumens at the 250W setting, and the Type III distribution throws a wide, forward-projected pattern that suits parking lots, roadways, and general area lighting where the pole sits at the edge of the zone being lit.
A universal mounting arm handles round poles greater than 4" in diameter and square poles with hole patterns from 1" to 5-1/2" on center, and a round-pole adapter plate is included. A 480V driver handles high-voltage commercial and industrial circuits directly, and 0-10V dimming is standard. The die-cast aluminum housing carries a bronze finish formulated for high-durability outdoor service. A 100,000-hour L70 LED life, IP65 sealing, an integrated photocell for dusk-to-dawn operation, and 10 kV surge protection layered on top of the driver's built-in surge suppressor take most of the maintenance out of a commercial parking or roadway install.
Features
- Field-adjustable output: 250W / 200W / 150W (factory default 200W)
- Field-selectable color temperature: 3000K / 4000K / 5000K (factory default 4000K)
- 24,410 to 40,574 lumens depending on wattage setting
- 153.3 to 178 lm/W efficacy
- 82-84 CRI
- 100,000-hour L70 LED life
- Type III IESNA distribution for roadway, parking, and general area lighting
- Replaces up to 1,000W metal halide or 600W high-pressure sodium at the 250W setting
- 480V input, Class 1 constant-current driver for high-voltage commercial circuits
- 0-10V dimming standard, dims down to 10%
- Integrated photocell with on/off switching
- 10 kV surge protection in addition to the driver's built-in surge suppressor
- Universal mounting arm for hole patterns from 1" to 5-1/2" center-to-center; round pole adapter plate included (round pole diameter must exceed 4" to mount at 90°)
- Die-cast aluminum housing, lens frame, and mounting arm
- Clear polycarbonate lens
- Bronze finish, formulated for high durability and long-lasting color
- BUG rating: B4 U0 G4 at 250W
- EPA: 0.4
Ideal For: Parking Lots • Roadways • Building Perimeters • Loading Docks • Commercial Campuses
UL Listed and suitable for wet locations. IP65 rated against dust and water. Cold-start rated to -40°F (-40°C) and suitable for use in ambient temperatures up to 104°F (40°C). 2G vibration-rated die-cast housing.
