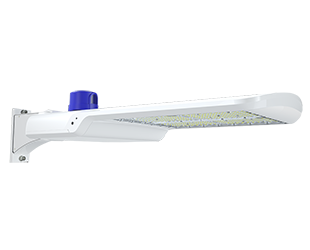

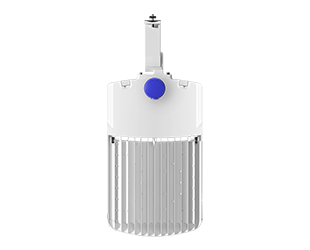

RAB Area A17 LED Fixture 3-Way Field Adjustable 3000K/4000K/5000K 300W/240W/200W LED White (A17XFU300W)

For high-mount roadway lighting, wide parking fields, and pole-run installations, this A17 field-adjustable luminaire delivers up to 46,356 lumens at maximum output, finished in white for a clean look on light-colored structures or where the fixture should read as part of the daytime facade. Three factory-selectable wattage settings (300W / 240W / 200W) and three color temperature options (3000K / 4000K / 5000K) let a single fixture cover multiple spec targets from the same shelf.

Die-cast aluminum construction handles the extra thermal load from 300W operation, and the fixture is IP65 rated for wet locations. A 3-pin twistlock photocell with shorting cap ships in the box, and an integrated ANSI C136.41 7-pin receptacle sits ready for a wireless controls upgrade. Standard 0-10V dimming reaches 10% for scheduled setback, and 10 kV surge protection guards the driver in exposed pole installations.

Features

• Field-selectable output: 300W / 240W / 200W (default 300W)
• Field-selectable color temperature: 3000K / 4000K / 5000K
• 30,567–46,356 lumens across settings; 147.6–163.3 lm/W efficacy
• 82–84 CRI
• 100,000-hour L70 rated life
• Type III distribution
• 0-10V dimming standard, dims to 10%
• 3-pin twistlock photocell and shorting cap included
• ANSI C136.41 7-pin receptacle for wireless controls upgrade
• 10 kV surge protection
• Die-cast aluminum housing, arm, and lens frame; polycarbonate lens
• Universal mounting arm fits 1" to 5-1/2" hole spacing; round pole adapter included
• Fixture weight: 15.4 lbs

Ideal For: Large Parking Lots • Roadways • Commercial Yards • Distribution Centers • Industrial Sites

UL Listed and suitable for wet locations. IP65 rated for dust and water. Cold-start rated to -40°F and rated for ambient temperatures up to 104°F. 3G vibration rated per ANSI C136.31.
