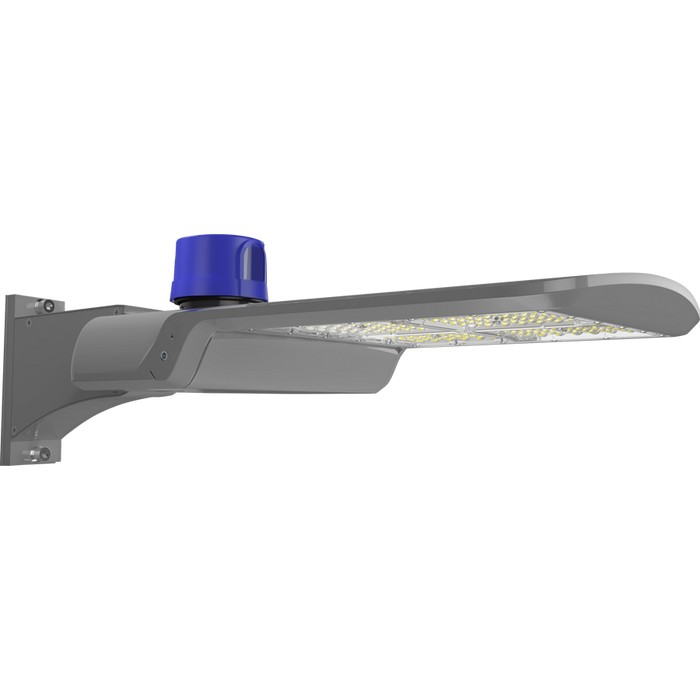

RAB LED Area Light A17 3-Way 150W/120W/100W CCT Selectable 3000K/4000K/5000K 120-277V 0-10V Dimming Roadway Gray (A17XFU150RG)

This field-adjustable A17 area luminaire delivers up to 23,339 lumens for parking lots, roadway edges, and general area lighting, finished in roadway gray to match standard DOT-style pole hardware. A single fixture covers three light-output levels and three color temperatures, letting a contractor set the right output and appearance on the job site without swapping fixtures.

A die-cast aluminum housing and polycarbonate lens carry an IP65 rating for wet locations, and the fixture ships with a 3-pin twistlock photocell plus shorting cap so it is ready to install with dusk-to-dawn control out of the box. An integrated ANSI C136.41 7-pin receptacle leaves a clean upgrade path to wireless area-lighting controls when the site adds them later. Standard 0-10V dimming reaches 10% for after-hours setback, and 10 kV surge protection guards the driver in exposed pole installations.

Features

• Field-selectable output: 150W / 120W / 100W (default 150W)
• Field-selectable color temperature: 3000K / 4000K / 5000K
• 15,177–23,339 lumens across settings; 145.6–165.7 lm/W efficacy
• 81–84 CRI
• 100,000-hour L70 rated life
• Type III distribution; BUG rating B5 U0 G4
• 0-10V dimming standard, dims to 10%
• 3-pin twistlock photocell and shorting cap included
• ANSI C136.41 7-pin receptacle for wireless controls upgrade
• 10 kV surge protection
• Die-cast aluminum housing, arm, and lens frame; polycarbonate lens
• Universal mounting arm fits 1" to 5-1/2" hole spacing; round pole adapter included
• Fixture weight: 11.6 lbs

Ideal For: Parking Lots • Roadway Edges • Commercial Sites • Loading Docks • Storage Yards

UL Listed and suitable for wet locations. IP65 rated for dust and water. Cold-start rated to -40°F and rated for ambient temperatures up to 104°F. 3G vibration rated per ANSI C136.31.
