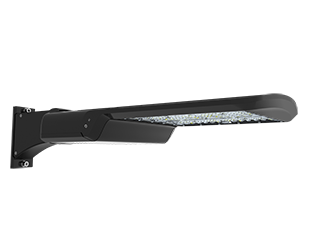

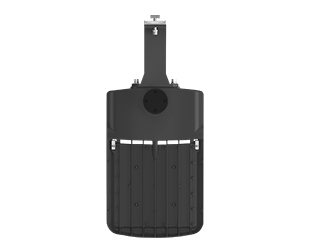

RAB LED Area Light Wattage/CCT Selectable 70W/60W/50W 3000K/4000K/5000K 480V 0-10V Dimming Bronze (A17-5T70/480)

RAB LED Area Light Wattage/CCT Selectable 70W/60W/50W 3000K/4000K/5000K 480V 0-10V Dimming Bronze (A17-5T70/480)

SKU A17-5T70/480
by RAB
$233.00 - $233.00
$233.00
Backorder: Usually Ships in 4-7 Days
Product Description

This RAB A17 field-adjustable LED area light mounts on a standard pole or mast arm for outdoor commercial lighting at 70W peak output. One fixture covers three wattage settings (70/60/50W) and three color temperatures (3000K, 4000K, 5000K), letting installers dial in the exact photometric result on site instead of stocking separate SKUs for each combination. 480V input, bronze finish.

Type V distribution puts out a wide, uniform 360° pattern that suits open commercial yards where poles sit inside the coverage area rather than at its edge. Wattage and color temperature both change through a field-side switch, so a single stocked SKU adjusts to the actual photometric target at install time.

Features

  • Field-adjustable output: 70W, 60W, or 50W selectable on the fixture
  • Field-adjustable color temperature: 3000K, 4000K, or 5000K
  • Delivers 7,444-10,983 lumens across the wattage and CCT settings
  • Efficacy up to 155.1 lm/W
  • 81-83 CRI for accurate color rendering outdoors
  • Type V distribution, BUG rating B3 U0 G2
  • 0-10V dimming standard, dims down to 10%
  • 6 kV surge protection
  • 480V input, 50/60 Hz
  • Die-cast aluminum housing, lens frame, and mounting arm
  • Polycarbonate lens
  • 8.8 lbs fixture weight

Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Warehouse Yards • Municipal Sites

UL Listed for wet locations. IP65 ingress protection against dust and water. Cold-weather rated to -40°F starting temperature. Suitable for use up to 104°F ambient. 3G vibration rating per ANSI C136.31. Requires professional installation on pole, mast arm, or bracket.

Frequently Asked Questions
How bright is this product?
This product offers 7444-10983 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product offers 3000-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is wet location rated and can be used in areas with direct exposure to rain or water including outdoor applications.
Is this product UL listed?
This product is UL Listed meaning it has been tested and certified by Underwriters Laboratories to meet established safety standards.
