Product Description

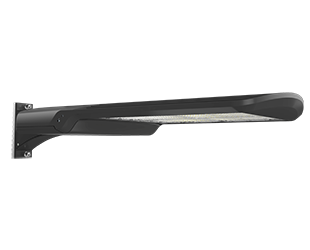

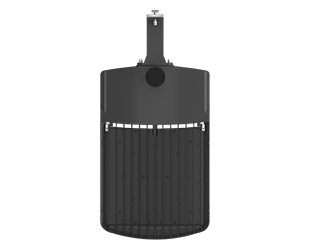

This A17 III area light delivers up to 76,317 lumens across a Type III distribution, with field-adjustable output (480W, 400W, or 320W) and field-adjustable color temperature (3000K, 4000K, or 5000K). Type III optics throw light forward and to the side of the fixture, a fit for parking-lot perimeters, roadways, walkways, and general area lighting where the pole sits along the edge of the space it illuminates.
The die-cast aluminum housing and polycarbonate lens carry an IP65 rating and a UL Wet Location listing for outdoor service. The universal mounting arm accepts 1 inch to 5-1/2 inch center-to-center hole spacing on square-pole adapters, and a round-pole adapter plate is included for pole diameters above 4 inches. Fixtures hold a 3G vibration rating per ANSI C136.31 for pole-top installations.
A multi-tap driver accepts 120V, 208V, 240V, and 277V input with 6 kV surge protection. 0-10V dimming is standard and dims uniformly down to 10%.
Features
- Field-adjustable 480W/400W/320W wattage with matching 3000K/4000K/5000K CCT selection
- 51,933-76,317 lm range at 81 CRI
- Type III IES distribution, BUG rating B3 U0 G3
- 0-10V dimming standard, uniform down to 10%
- IP65 rated with 6 kV surge protection
- 100,000-hour L70 rated lifespan
- Die-cast aluminum housing and lens frame, polycarbonate lens
- Cold-weather start to -40°F, ambient operation to 104°F
- Universal mounting arm with round-pole adapter plate included
- 120-277V multi-tap driver
Ideal For: Parking Lots • Roadways • Walkways • Building Perimeters • Commercial Exteriors
UL Listed for Wet Locations. IP65 rated.
