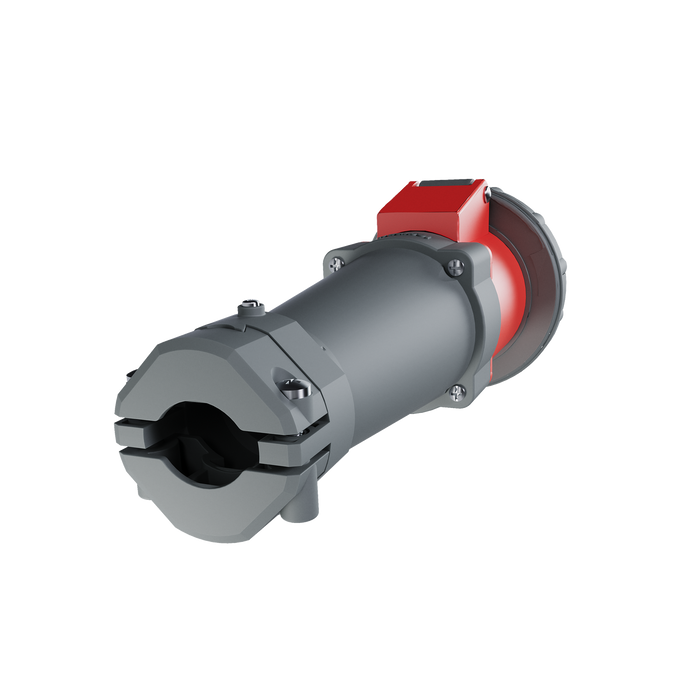

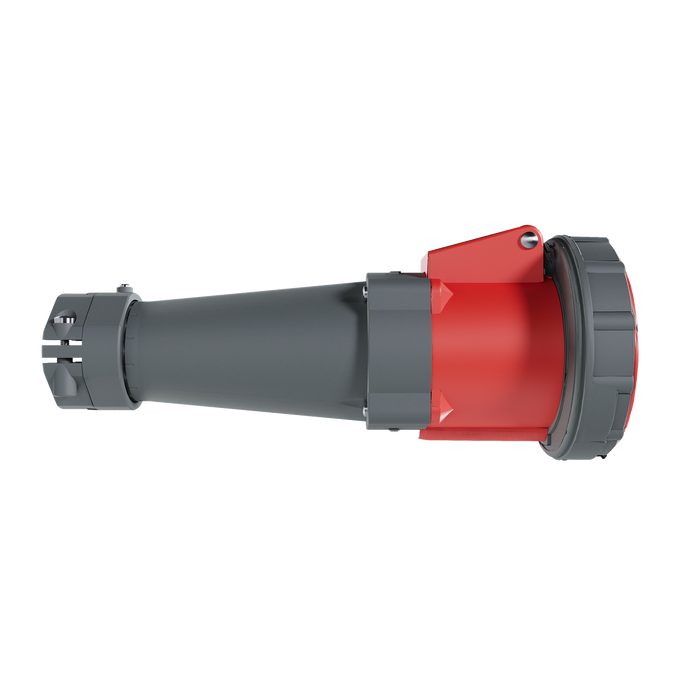

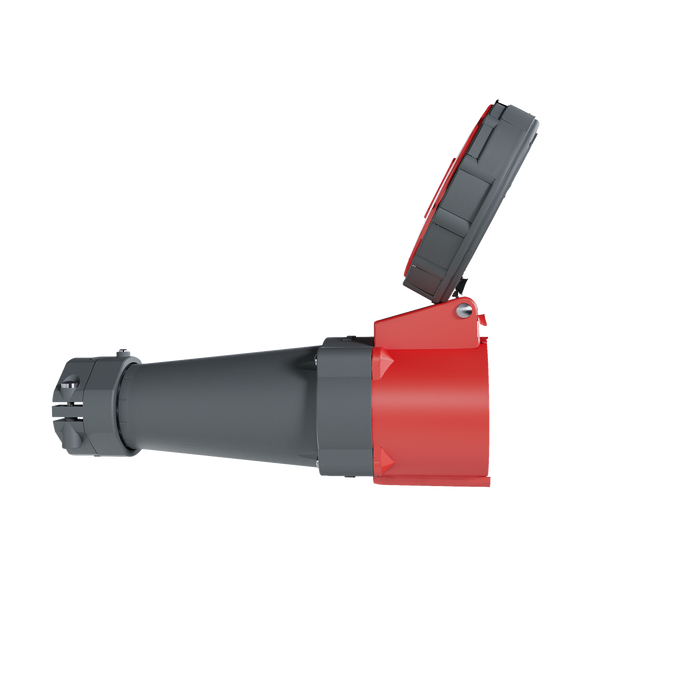

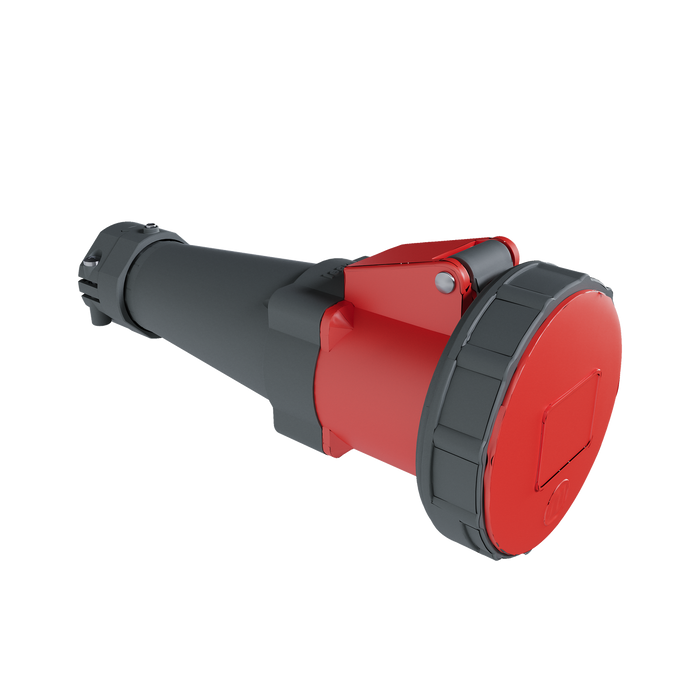

Pass and Seymour Pin And Sleeve Connector 5-Wire 60A 277/480V Cord Clamp (LE560C7W)

The Pass & Seymour Pin & Sleeve Connector 60A 5-Wire 277/480V with Cord Clamp delivers heavy-duty IEC 60309-style 3-phase wye connectivity at the 277/480V North American commercial standard. The 5-wire configuration supports both 277V lighting loads and 480V 3-phase equipment from a single device.

Part of Pass & Seymour's industrial Pin & Sleeve line, this connector uses IEC 60309 red color coding and is commonly specified for large commercial building power, industrial manufacturing, and high-current HVAC systems.

Features

• 60-amp, 277/480V pin and sleeve connector
• 5-wire (3P+N+G) configuration
• Cord clamp for flexible cable entry
• IEC 60309 red color coding
• IP-rated environmental protection
• Heavy-duty industrial housing

Ideal For: Commercial Buildings • Data Centers • Industrial Manufacturing • Large HVAC Systems • Commercial Lighting Distribution

Match voltage, amperage, and IEC color code to mating device. Verify cord diameter fits clamp range.
