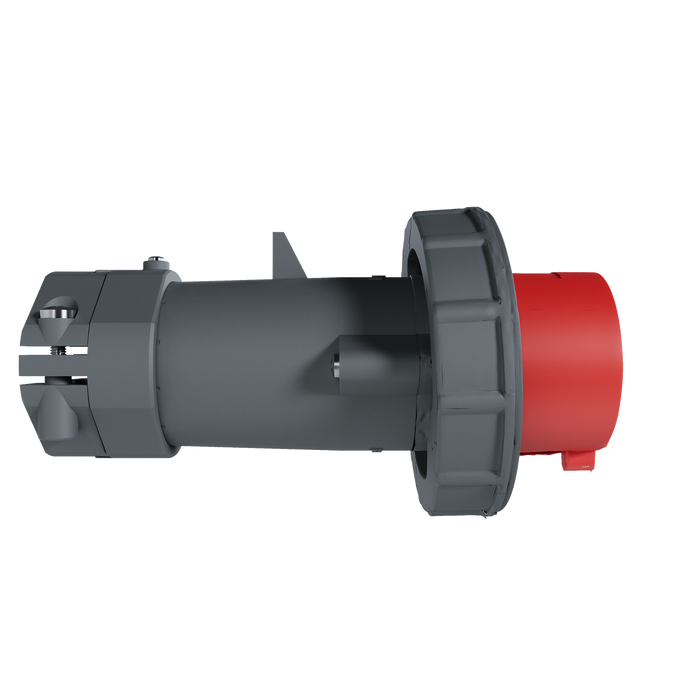

Pass and Seymour Pin And Sleeve Plug 5-Wire 30A 277/480V Cord Clamp (LE530P7W)

The Pass & Seymour Pin & Sleeve Plug 30A 5-Wire 277/480V with Cord Clamp delivers IEC 60309-style 3-phase wye connectivity at the 277/480V standard used in North American commercial and industrial power distribution. The 5-wire configuration (3 phases + neutral + ground) supports both 277V lighting loads and 480V 3-phase equipment.

Part of Pass & Seymour's industrial Pin & Sleeve line, this plug uses IEC 60309 red color coding (standard for 480V) and is commonly specified for commercial building power, data center distribution, and large HVAC systems.

Features

• 30-amp, 277/480V pin and sleeve plug
• 5-wire (3P+N+G) configuration

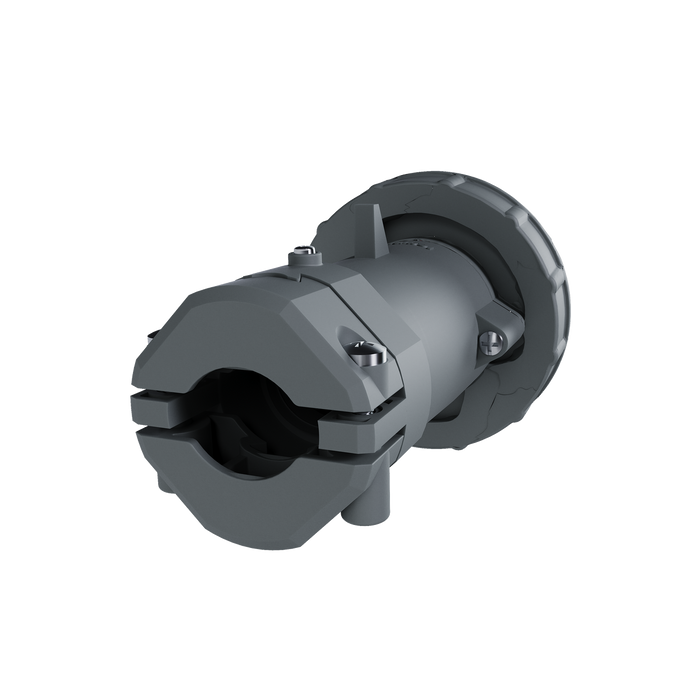

• Cord clamp for flexible cable entry
• IEC 60309 red color coding
• IP-rated environmental protection
• Heavy-duty industrial housing

Ideal For: Commercial Buildings • Data Centers • Industrial Manufacturing • Commercial Lighting • Large HVAC Systems

Match voltage, amperage, and IEC color code to mating connector. Verify cord diameter fits clamp range.
