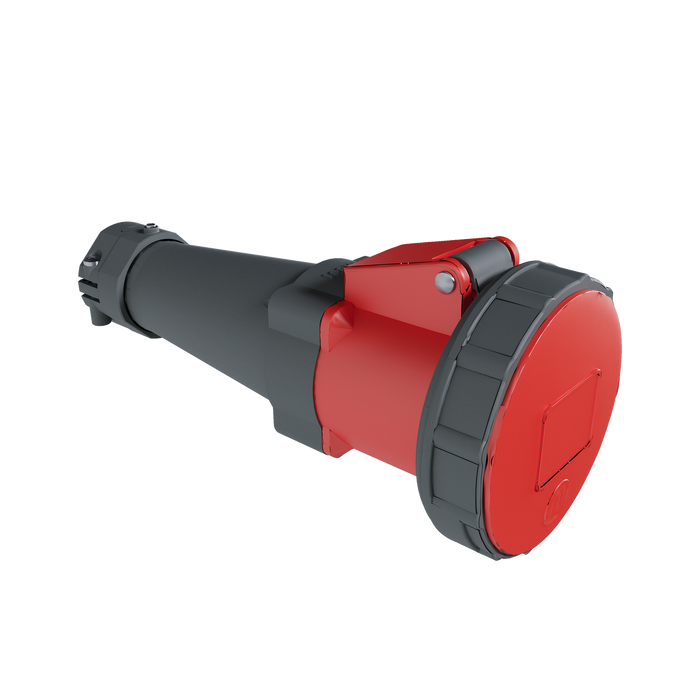

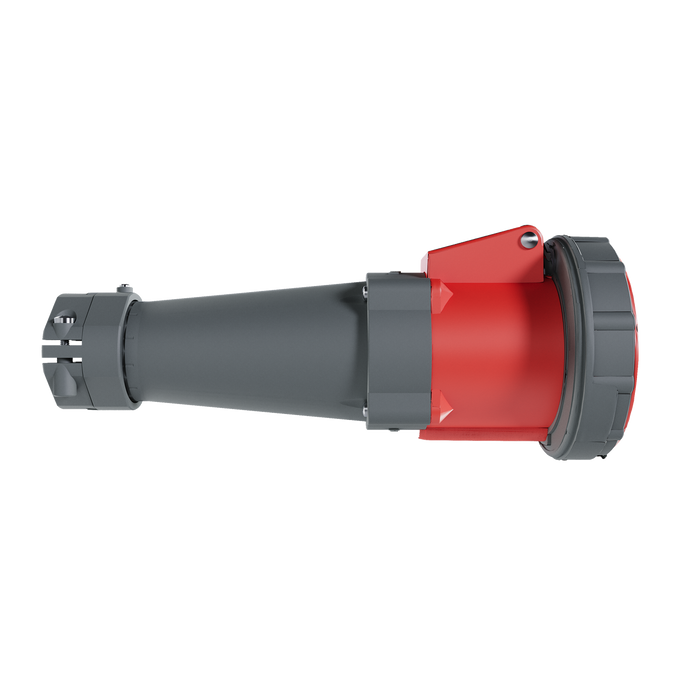

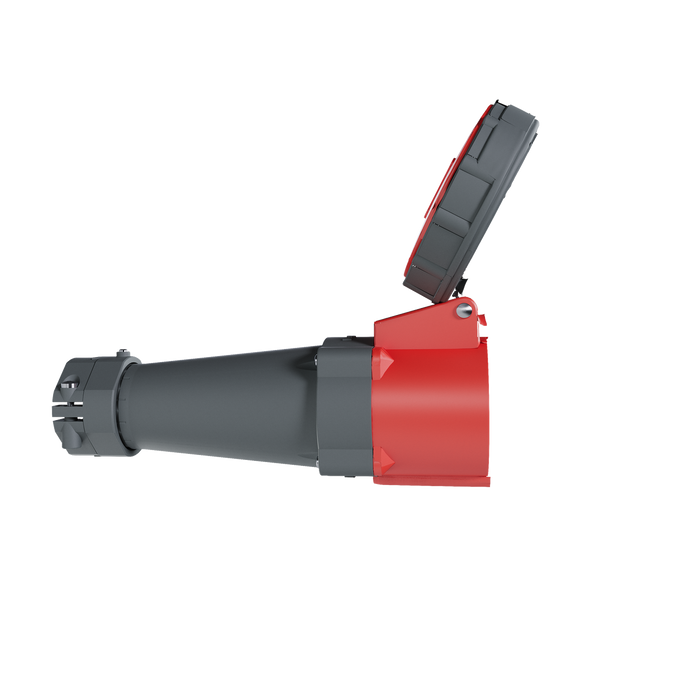

Pass and Seymour Pin And Sleeve Connector 3-Wire 60A 480V Cord Clamp (LE360C7W)

The Pass & Seymour Pin & Sleeve Connector 60A 3-Wire 480V with Cord Clamp is a heavy-duty industrial connector rated for 60 amps on a 480V circuit—ideal for high-voltage single-phase or 2-pole applications. The cord clamp accepts flexible cable directly, making it well-suited for portable equipment and cord-fed connections.

Part of Pass & Seymour's industrial Pin & Sleeve line, this 480V connector uses IEC 60309 color coding to help prevent accidental cross-connection with different voltage systems in mixed-voltage facilities.

Features

• 60-amp, 480V pin and sleeve connector
• 3-wire (2P+G) configuration

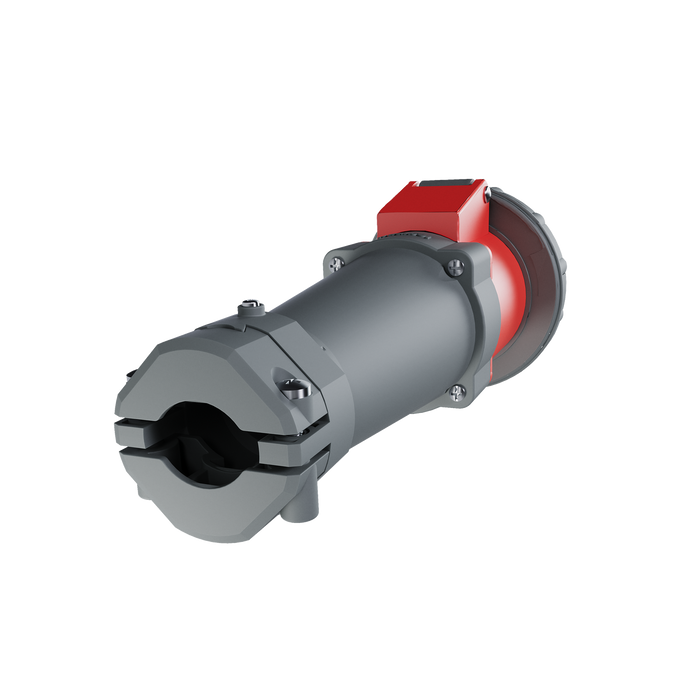

• Cord clamp entry for flexible cable
• IEC 60309 color coding (480V red)
• IP-rated environmental sealing
• Rugged industrial housing

Ideal For: Industrial Welders • Heavy Machinery • Manufacturing Equipment • Mining Operations • Large HVAC Systems

Verify voltage, amperage, and IEC color code match the mating device. Properly size cord diameter to clamp range.
