ILSCO ClearTap Insulated Aluminum Multi-Tap Connector Conductor Range 3/0-6 3 Ports Single Sided Entry Tin Plated UL CSA SR (ECTS-3-3/0-SR)

ILSCO ClearTap Insulated Aluminum Multi-Tap Connector Conductor Range 3/0-6 3 Ports Single Sided Entry Tin Plated UL CSA SR (ECTS-3-3/0-SR)

SKU ECTS-3-3/0-SR
by ILSCO
$65.89 - $65.89
$65.89
Backorder: Usually Ships in 10-20 Days
Product Description

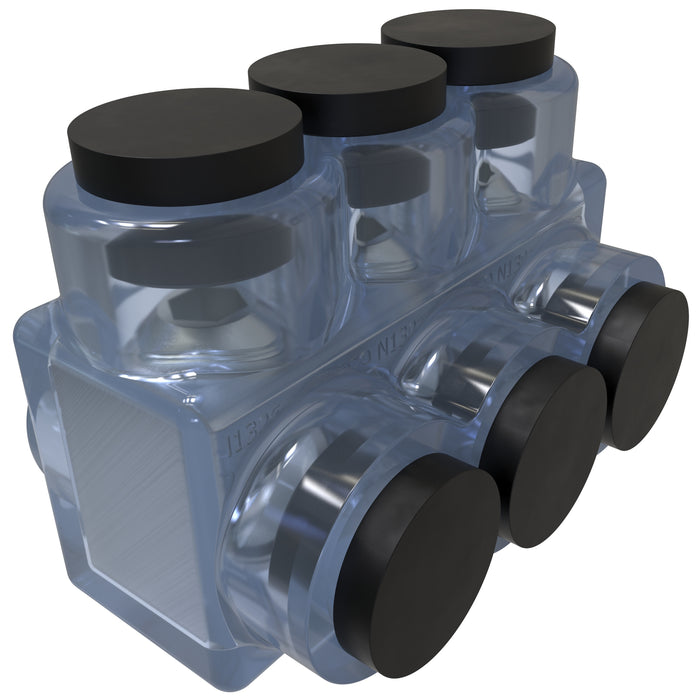

The ILSCO ClearTap ECTS-3-3/0 is a three-port single-sided-entry insulated multi-tap connector covering the 3/0–6 AWG conductor range, with a transparent plastisol cover for visual inspection of seated conductors — suited to mid-size commercial feeders and panel taps.

Features

  • 3 ports, single-sided entry; 3/0–6 AWG dual-rated (copper/aluminum)
  • UL 486A/486B Listed, CSA Certified, 600V, 90°C; cold-rated to -45°C
  • NEC 2020 §230.46 listed for splicing service-entrance conductors
  • Transparent high-dielectric plastisol cover with removable port plugs
  • 6061-T6 tin-plated aluminum body; pre-filled with DE-OX® inhibitor

Ideal For: Commercial Feeder Taps • Service Entrances • Panel Splices • Sub-Panel Installations • Retrofit Work

Installs with hex key and torque wrench per ILSCO specs. Per NEC 310.16/310.17, allowable ampacity at 3/0 is 225A. Meets NEC 2020 §230.46 service-entrance conductor listing requirements.
