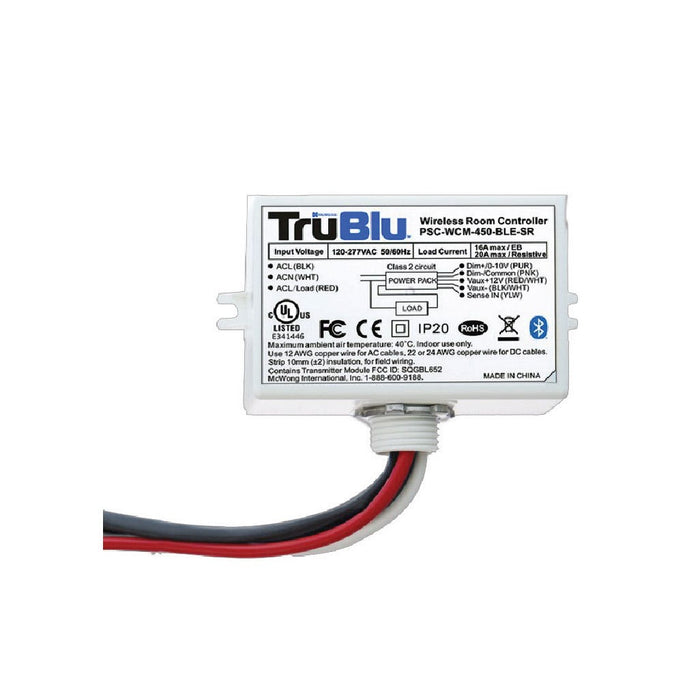

Halco PSC-WCM-450-BLE-SR TruBlu Mesh Line Voltage Single Channel Wireless Room Controller With Integral Relay 120-277VAC (25433)

This wireless room controller ties one or more TruBlu ceiling sensors and wall stations together and drives a single lighting zone at line voltage through its integral 20A relay. It is the mesh-side partner to the ceiling occupancy sensors (25431, 25432), converting their Bluetooth reports into direct switching and 0–10V dimming at the fixture circuit.

Line-voltage input from 120–277VAC covers most commercial circuits, and a 12VDC auxiliary output feeds the low-voltage ceiling sensors it commands. Mount via a 1/2-inch knockout to an electrical enclosure, or use the built-in tabs to attach directly to a fixture housing.

Features

• Function: Single-channel wireless room controller with integral 20A relay and 0–10VDC dimming output
• Input: 120–277VAC line voltage
• Auxiliary Output: 12VDC for powering paired ceiling sensors

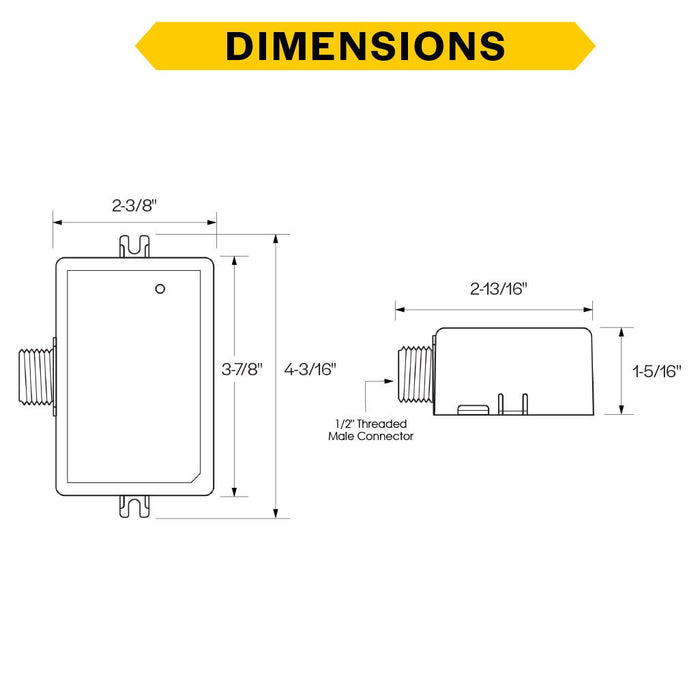

• Mount: 1/2" knockout to enclosure, or mounting tabs to fixture housing (threaded nipple and locknut included)
• Wireless Range: Bluetooth SIG mesh up to 100 ft
• Operating Range: –40°C to 40°C (–40°F to 104°F)

Ideal For: Commercial office suites • Classrooms • Conference rooms • Retail back-of-house • Small institutional rooms

UL Listed. 5-year warranty.
