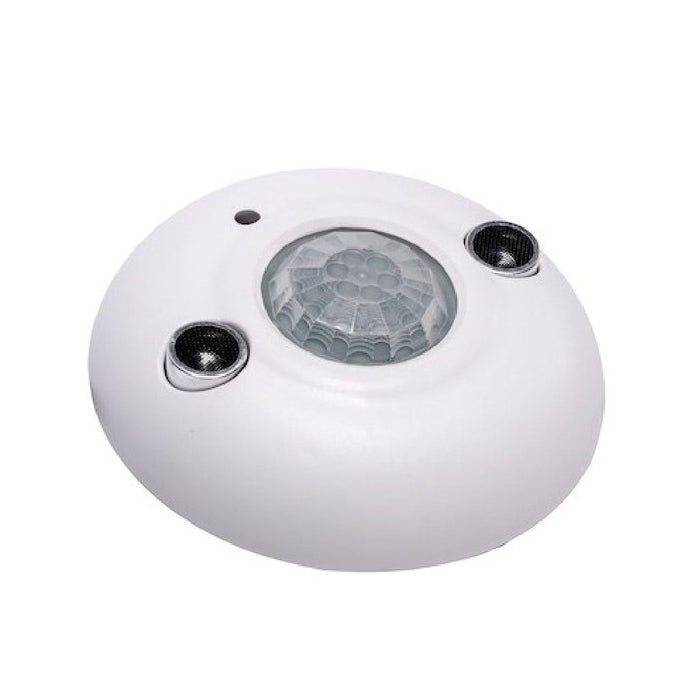

Halco PSC-BL-D-CM-DC-BLE-SR TruBlu Mesh Wireless Dual Tech Ceiling Occupancy Sensor Low Voltage Input 12-24VDC (25432)

When PIR alone can't catch every corner of a partitioned or obstructed room, this dual-technology ceiling sensor combines passive infrared and ultrasonic detection to catch stationary occupants and around-corner motion that a PIR-only sensor would miss. Coverage runs to 1,600 sq ft for PIR and 900 sq ft for ultrasonic from a ceiling mount up to 12 feet high.

The sensor reports to a paired TruBlu Room Controller (25433) over Bluetooth mesh, and both occupancy and vacancy operating modes can be configured through the mwConnect TruBlu portal or iOS app.

Features

• Function: Dual-technology (PIR + ultrasonic) wireless occupancy sensor with occupancy or vacancy modes
• Coverage: 1,600 sq ft PIR / 900 sq ft ultrasonic from a 12-ft ceiling mount
• Input: 12–24VDC
• Pairing: Use with TruBlu Room Controller 25433
• Mount: Standard ceiling electrical box
• Wireless Range: Bluetooth SIG mesh
• Finish: White

Ideal For: Partitioned open offices • Classrooms with fixed seating • Restrooms • Corridors • Conference rooms with heavy furniture

UL Listed. 5-year warranty.
