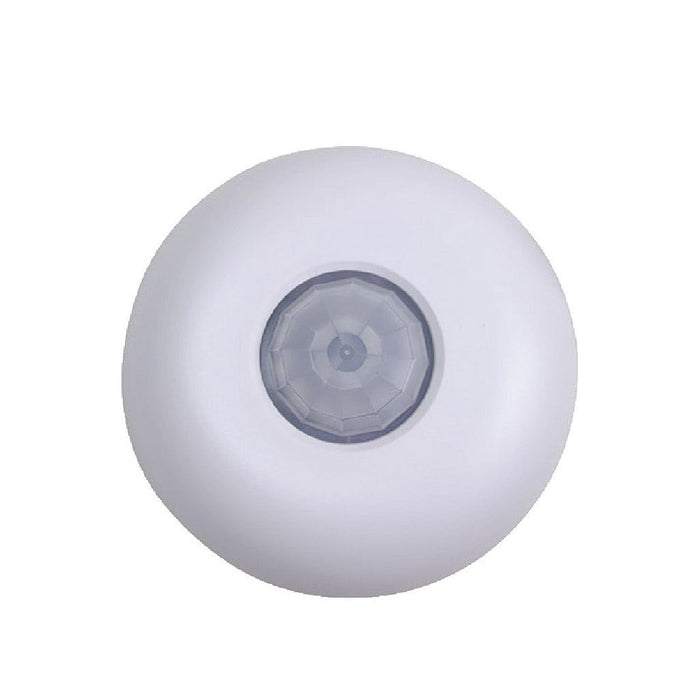

Halco PSC-ND-I-CM-DC-BLE-SR TruBlu Mesh Wireless PIR Ceiling Occupancy Sensor Low Voltage Input 12-24VDC (25431)

This wireless ceiling-mounted PIR sensor watches a 37-foot radius from a ceiling mount up to 12 feet high, reporting occupancy to a paired TruBlu Room Controller (25433) over Bluetooth mesh. An LED motion indicator confirms sensing during commissioning, taking the guesswork out of aim and coverage.

Power comes from a 12–24VDC feed — either a dedicated power pack or a driver's auxiliary output — and the sensor mounts to a standard ceiling electrical box.

Features

• Function: Wireless PIR occupancy sensor for room-level control
• Coverage: 37-ft sensor radius from ceiling mount up to 12 ft
• Input: 12–24VDC (power pack or driver auxiliary output)
• Pairing: Use with TruBlu Room Controller 25433
• Mount: Standard ceiling electrical box
• Wireless Range: Bluetooth SIG mesh up to 100 ft
• Finish: White

Ideal For: Open commercial offices • Classrooms • Conference rooms • Break rooms • Retail stockrooms

UL Listed. 5-year warranty.
