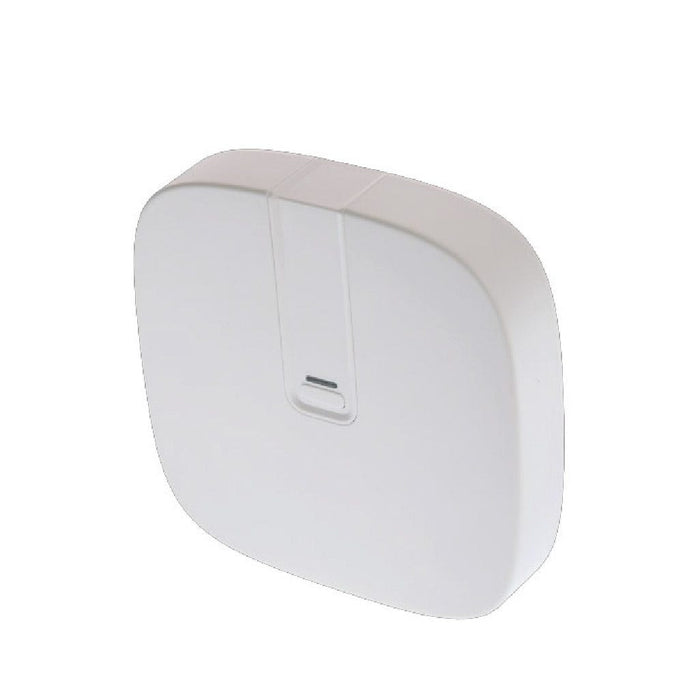

Halco PSC-SGW-101-DC TruBlu SIG Mesh Wireless Gateway (25428)

The gateway ties a TruBlu Bluetooth mesh lighting network to the internet, unlocking remote scheduling, cloud-based monitoring, real-time power consumption tracking, and occupancy heat maps through the mwConnect portal. Multiple gateways can be networked together on larger campuses to expand coverage.

Power comes from either a 12VDC (1–1.5A) supply or PoE (802.3af) drop, and the included wall bracket handles surface mounting to any indoor wall.

Features

• Function: Cloud gateway for remote monitoring, scheduling, power tracking, and occupancy heat mapping
• Power: 12VDC (1–1.5A) or PoE 802.3af
• Mount: Indoor wall mount, bracket included
• Wireless Range: Bluetooth SIG mesh up to 100 ft
• Finish: White
• Operating Range: 0°C to 70°C (32°F to 158°F)

Ideal For: Multi-tenant commercial buildings • Hospitality properties • Retail chains • Commercial office campuses • Warehouse operations

5-year warranty.
