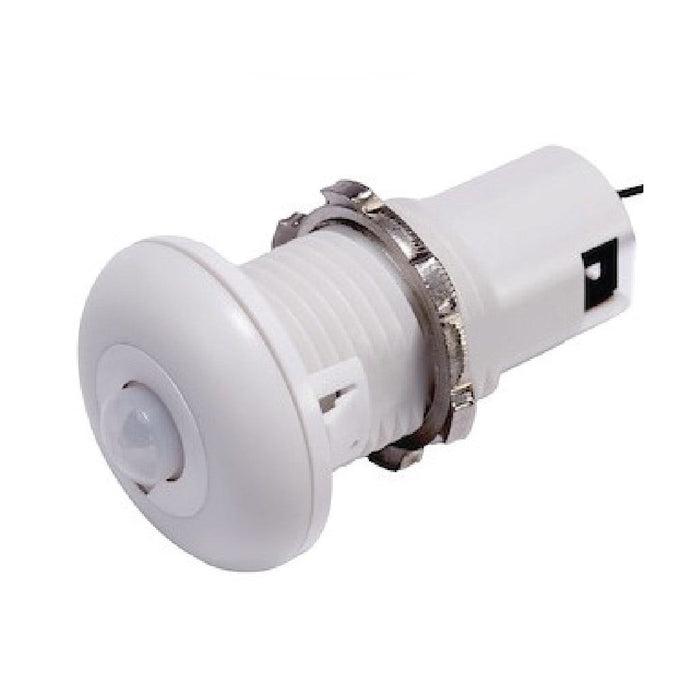

Halco PSC-ZMV-I-11N-BLE-SR TruBlu Mesh Compact PIR Sensor Controller Screw Base For Knock-Out 12-24VDC 0-10 Dimming 8-15 Foot Mount Height (25423)

Compact enough to seat in a 1/2-inch knockout, this Bluetooth mesh PIR sensor and controller adds occupancy sensing, 0–10V dimming, and daylight sensing to fixtures without a Zhaga or audio-pin base. A low-voltage feed (12–24VDC) from the driver powers the unit; the body threads through the knockout and secures with the included clips or via its own threaded body.

A 15-foot sensor radius covers mounting heights from eight to 15 feet, and configuration runs through the mwConnect TruBlu web portal or iOS app.

Features

• Function: PIR occupancy sensor with 0–10V single-channel dimming, zoning, and high/low end trim

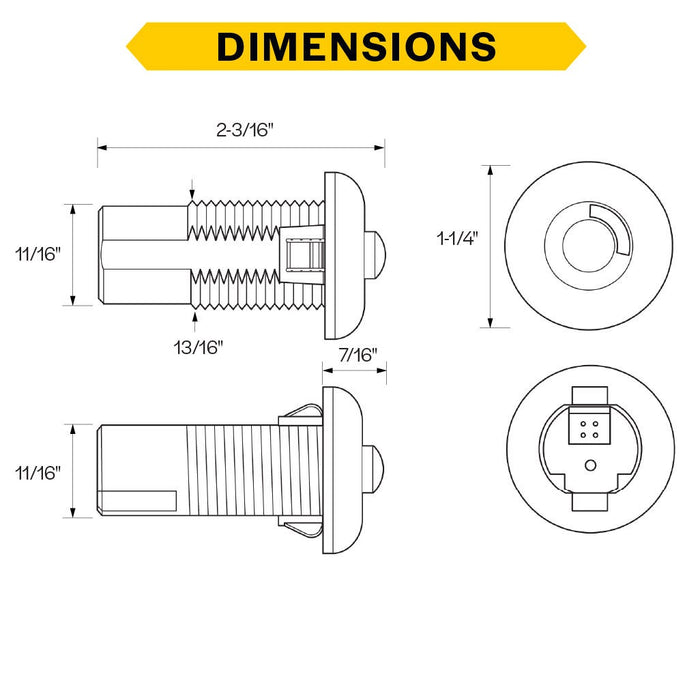

• Mount: 1/2" fixture knockout, secured by included clips or threaded body
• Fixture Mount Height: 8–15 ft, 15-ft sensor radius
• Input: 12–24VDC
• Finish: White
• Operating Range: –40°C to 70°C (–40°F to 158°F)

Ideal For: Vapor-tight linear fixtures • Enclosed panels • Troffers • Strip lights in stairwells • Utility fixtures in mechanical rooms

UL Listed. 5-year warranty.
