Halco PSC-JBV-I-11N-BLE-SR TruBlu Mesh Low Voltage PIR Sensor Controller For Panels And Troffers 3.5Mm Audio Pin 0-10V Dimming 12-24VDC With Photocell White To 15 Foot (25421)

Designed for panels, troffers, and linear strip fixtures with a 3.5mm audio-pin input, this Bluetooth mesh PIR sensor and controller drops occupancy sensing, 0–10V dimming, and daylight harvesting into a low-ceiling install. It is calibrated for mount heights up to 15 feet with a six-foot detection radius directly below the fixture.

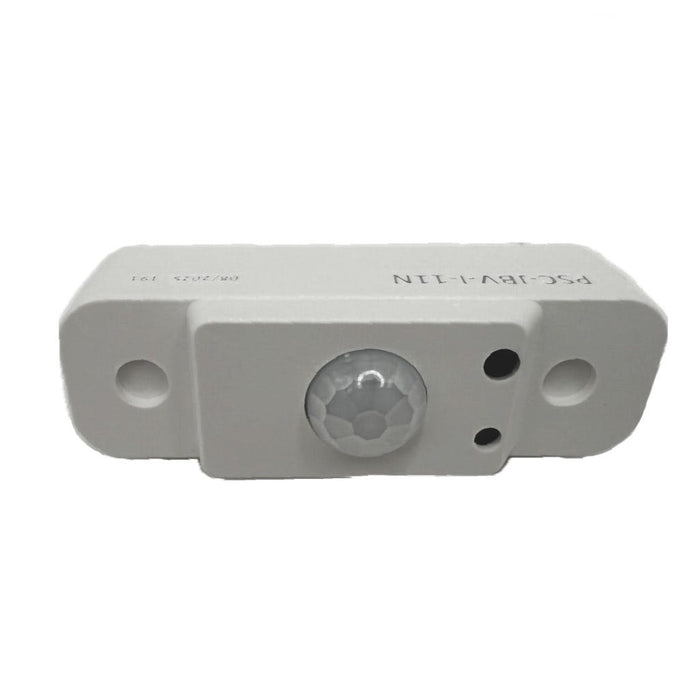

The compact white housing seats behind or into the fixture on the audio-pin plug, and configuration runs through the mwConnect TruBlu web portal or iOS app.

Features

• Function: PIR occupancy sensor with 0–10V single-channel dimming, integrated photosensor, and zoning

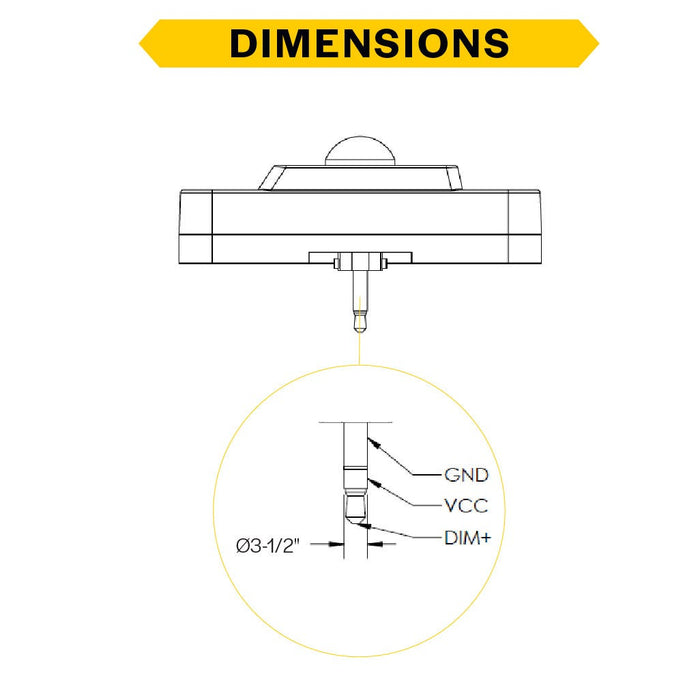

• Mount: 3.5mm audio-pin jack
• Fixture Mount Height: up to 15 ft, 6-ft detection radius
• Input: 12–24VDC
• Wireless Range: Bluetooth SIG mesh up to 100 ft
• Finish: White
• Operating Range: –20°C to 40°C (–4°F to 104°F)

Ideal For: Office ceiling panels • Classroom troffers • Corridor strip fixtures • Retail back-of-house • Hospitality corridors

UL Listed. 5-year warranty.
