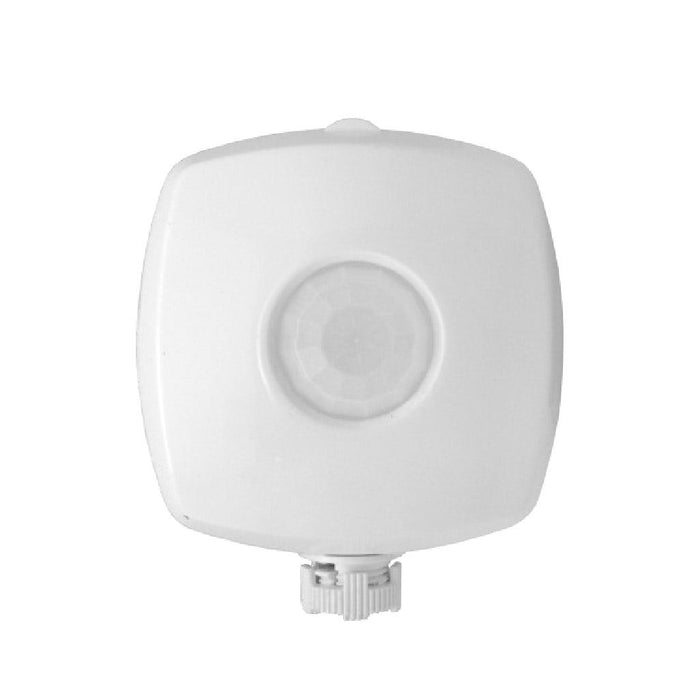

Halco PSC-BL-I-FM-110-BLE-SR TruBlu Mesh Fixture Side Mounted PIR Motion Sensor High/Low Bay Line Voltage 100-277VAC 0-10V Dimming White [High Bay Lens Installed Low Bay Lens Aisle Covers Included] Arm Sold Separately [25438] (25420)

This side-mounted PIR sensor and controller wires directly to line voltage (120–277VAC) and mounts to the side housing of a high or low bay fixture. Interchangeable optical lenses cover both high-bay reach and low-bay aisle patterns, and masking covers ship in the box to trim detection at aisle ends and against walls.

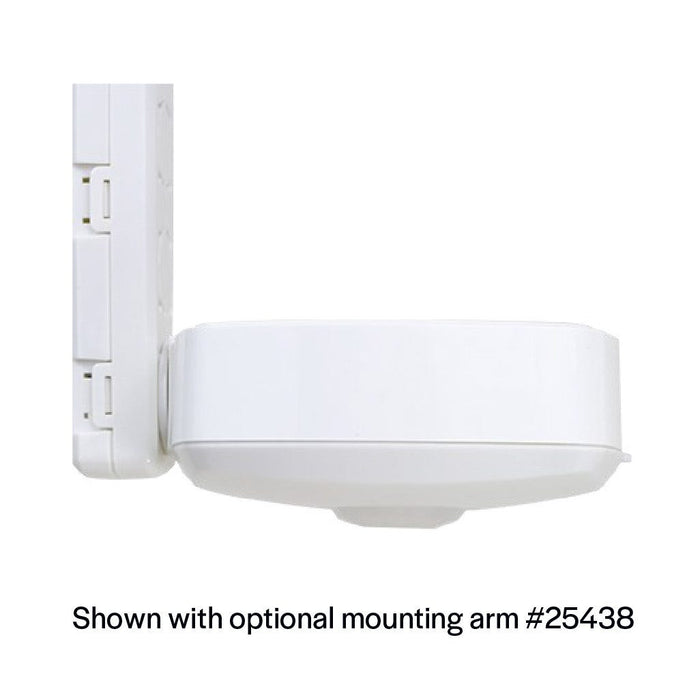

The high-bay lens ships installed; low-bay lens and aisle covers are included in the carton. Optional mount arm 25438 is sold separately for extended placement off the fixture body.

Features

• Function: PIR occupancy sensor with 0–10V dimming, integrated daylight sensor, and zoning
• Mount: Wired side-mount to fixture body (arm 25438 sold separately)
• Fixture Mount Height: up to 40 ft
• Input: 120–277VAC line voltage
• Lenses Included: High-bay lens installed; low-bay lens and aisle masking covers included
• Finish: White
• Operating Range: –20°C to 60°C (–4°F to 140°F)

Ideal For: Warehouse aisle high bays • Distribution center racking • Gymnasiums • Big-box retail interiors • Industrial floors

UL Listed. 5-year warranty.
