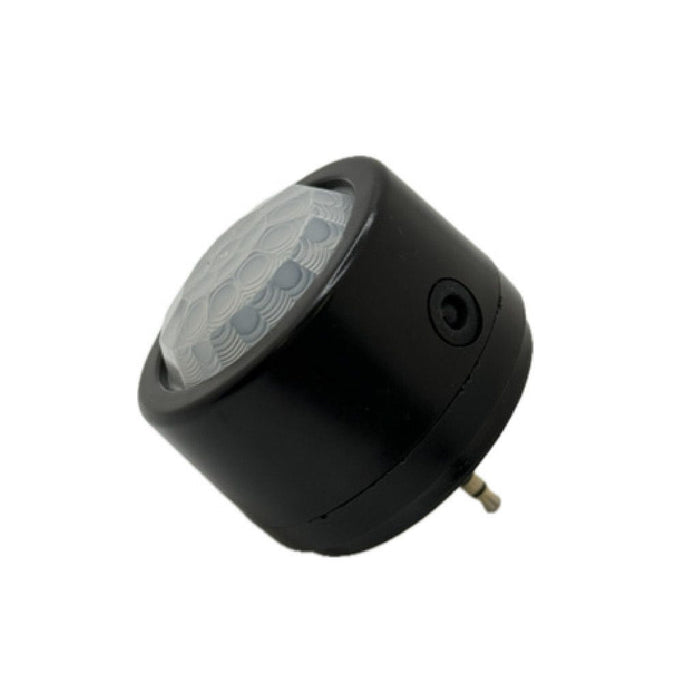

Halco PSC-JAV-I-11H-BLE-SR-BK TruBlu SIG Mesh PIR High/Low Bay Sensor Controller 0-10V Dimming 3.5Mm Audio Pin 12-24VDC With Photocell Black [20-40 Foot Mount Height] (25418)

For fixtures with a 3.5mm audio-pin input, this Bluetooth mesh PIR sensor and controller adds occupancy detection, 0–10V dimming, and integrated daylight sensing without the Zhaga Z-10 base. It is calibrated for mounting heights between 20 and 40 feet, covering an 80-foot detection diameter below the fixture.

Wireless connectivity reaches roughly 100 feet between nodes, and configuration runs through the mwConnect TruBlu web portal or iOS app.

Features

• Function: PIR occupancy sensor with 0–10V single-channel dimming, integrated photosensor, and zoning
• Mount: 3.5mm audio-pin jack
• Fixture Mount Height: 20–40 ft, 80-ft detection diameter
• Input: 12–24VDC
• Wireless Range: Bluetooth SIG mesh up to 100 ft
• Finish: Black
• Operating Range: –20°C to 45°C (–4°F to 113°F)

Ideal For: Interior high bays • Warehouse aisles • Gymnasium ceilings • Industrial workshop ceilings • Distribution centers

UL Listed. 5-year warranty.
