Halco HSN-SEN-PIR-DAY-010-Z10-BZ Haisen PIR Sensor Bronze Z10 Base Compatible Daylight Harvesting 0-10V Dimming Remote 90555 And/Or Dial Quick Setting Option (24981)

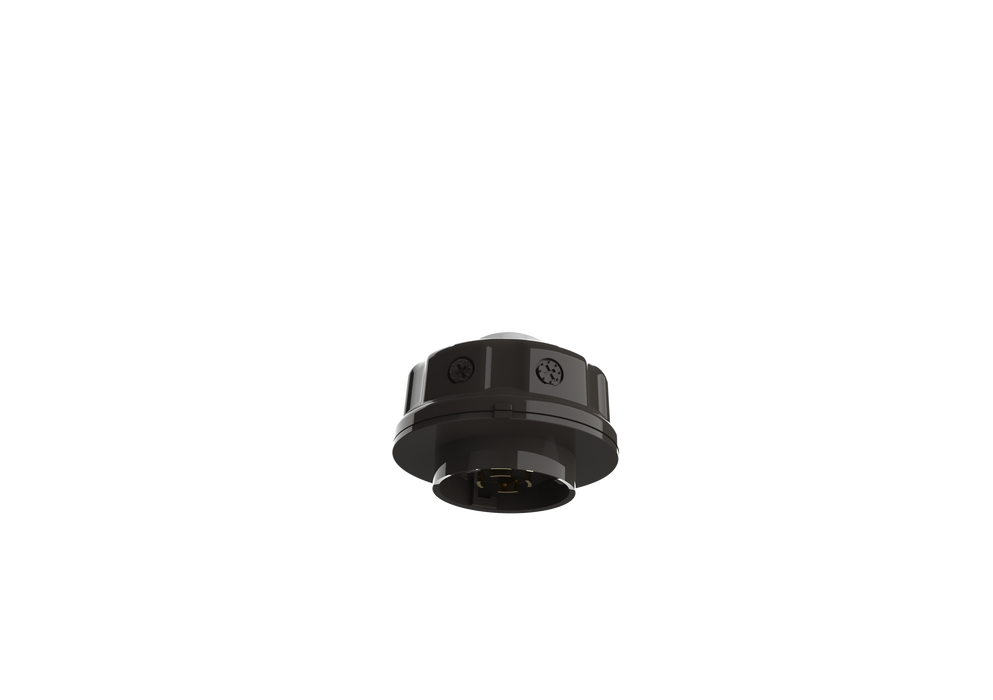

This Haisen PIR sensor is a standalone motion controller that seats on a Zhaga Z10 or Z18 receptacle atop the fixture — no in-fixture wiring. It combines motion sensing, daylight harvesting, and 0-10V dimming in one plug-and-play device, and is rated for wet locations up to a 40-foot mounting height. Finish is bronze to match the fixture below.

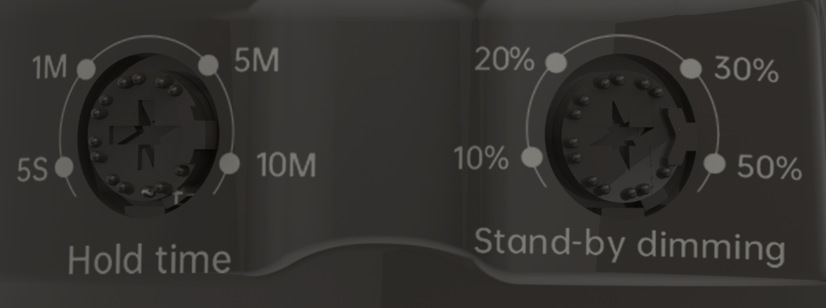

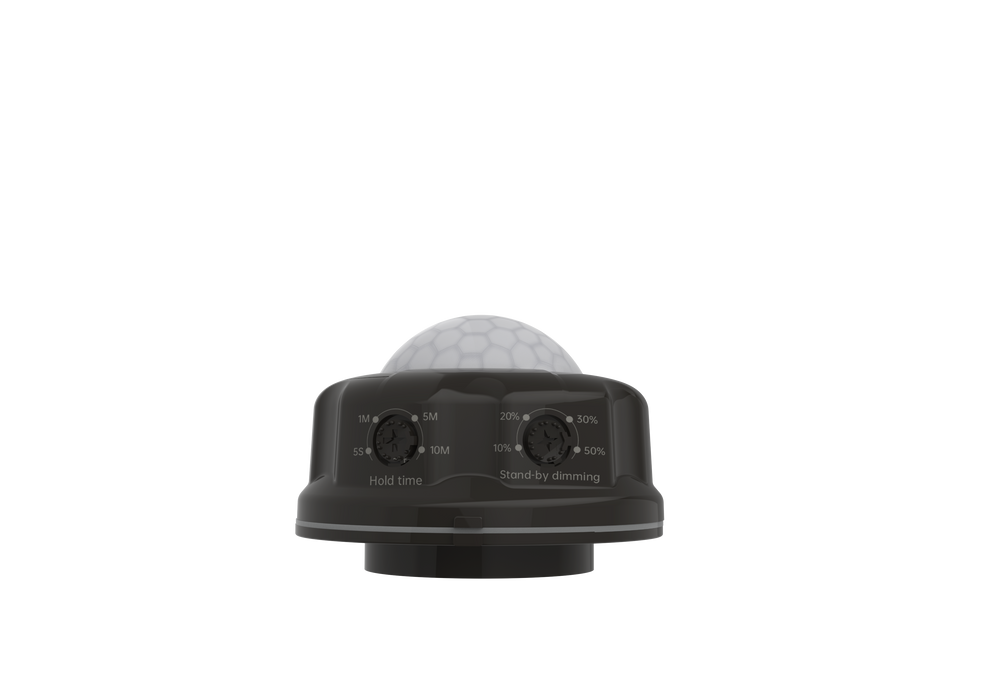

Setup can be done two ways: quick-dial adjustments on the device for basic timeout and sensitivity, or the Halco 90555 remote (sold separately) for full access to every feature and function. Because daylight harvesting is built in, no separate photocell is needed — this sensor cannot be paired with one.

Features

• Type: Standalone PIR (passive infrared) sensor
• Base: Zhaga Z10 or Z18 receptacle compatible
• Functions: Motion sensing, daylight harvesting, 0-10V dimming
• Compatibility: SekTor Area Light G2, high bays, and flood fixtures with a Zhaga Z10 or Z18 receptacle
• Programming: On-device dial (basic) or Halco 90555 remote (full feature set, sold separately)
• Mounting Height: Rated up to 40 ft
• Finish: Bronze
• Not Compatible With: Photocell (daylight sensing is integrated)

Ideal For: Parking Lots • Warehouses • Loading Docks • Auto Dealerships • Commercial Sites Requiring Motion and Daylight Control

Wet Location rated.
