Product Description

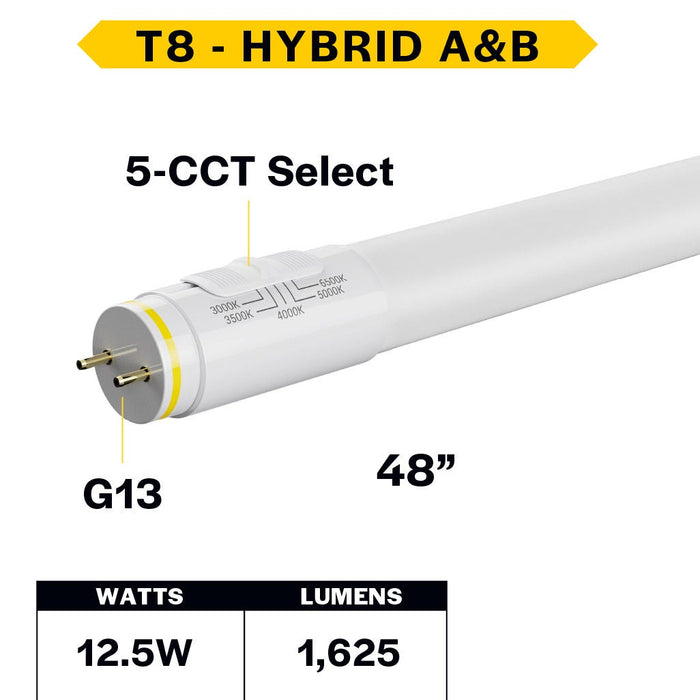

The Halco 48-inch ProLED Hybrid T8 LED Tube (48T8-12-8CS-HYB-D-LED2) is the workhorse of Halco's Gen-2 ProLED tube line, replacing the most common fluorescent T8 length used in commercial troffers, strip fixtures, and shop lights. CCT selectability and Hybrid Type A/B operation make it a single SKU that fits across mixed-ballast environments and supports future ballast-bypass conversion.
Hybrid Type A/B means the tube runs on most existing T8 fluorescent ballasts (Type A, plug-and-play) or can be wired directly to line voltage after a ballast bypass (Type B). Setting CCT with the onboard switch covers everything from warm 3000K to daylight 6500K, eliminating the need to stock multiple color-temp variants for office, retail, healthcare, and education retrofits. 0–10V dimming is supported in Type B mode with the matching LDM-T8195 driver.
Features

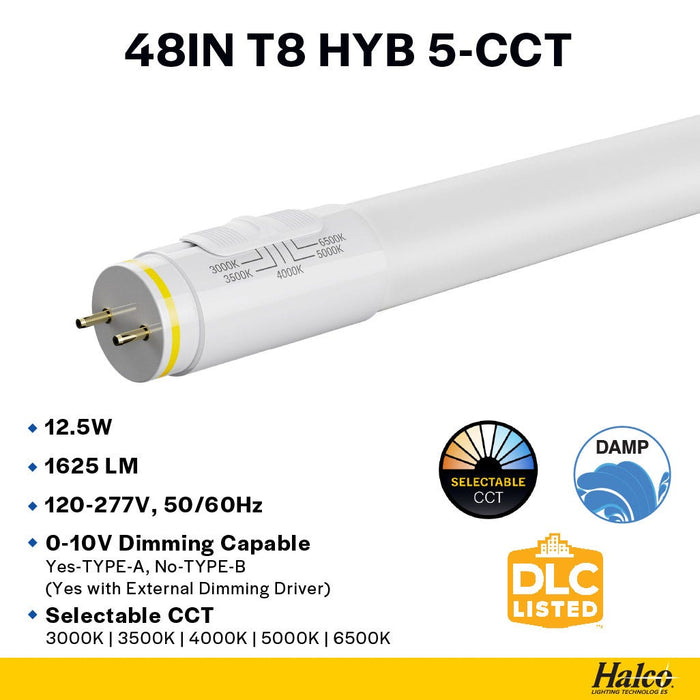

- 48-inch length; G13 medium bi-pin base; 12.5W
- 5-CCT selectable: 3000K / 3500K / 4000K / 5000K / 6500K; 80 CRI
- Hybrid Type A/B operation: works with most T8 fluorescent ballasts or direct-wire installation
- Dimmable in Type B mode with compatible 0–10V driver (LDM-T8195-100WM, sold separately)
- 220° beam angle for broad, even fixture distribution
- DuoConnect end-cap technology
Ideal For: Offices • Schools • Healthcare Facilities • Retail • Warehouses • Garages and Workshops
For 0–10V dimming in Type B mode, the LDM-T8195-100WM dimming driver is required (sold separately). Verify ballast compatibility for Type A operation. Compatible with single-ended and double-ended power configurations — follow tube and fixture wiring instructions.
