Halco SFLD3-HLS-CS-H-BZ-3PR Sektor LED Floodlight Bronze High Voltage With Lens Shift Technology Selectable 13000Lm-22200Lm 100W/125W/150W 3000K/4000K/5000K 277-480VAC 0-10V Dimming (22911)

Halco SFLD3-HLS-CS-H-BZ-3PR Sektor LED Floodlight Bronze High Voltage With Lens Shift Technology Selectable 13000Lm-22200Lm 100W/125W/150W 3000K/4000K/5000K 277-480VAC 0-10V Dimming (22911)

SKU HALCO-22911
by Halco
$245.22 - $245.22
$245.22
Backorder: Usually Ships in 7-14 Days
Product Description

The high-voltage, top-tier LED Sektor floodlight in bronze powder coat — 277-480VAC service, field-selectable across 100W, 125W, or 150W for 13,000 to 22,200 lumens. Built for industrial and utility site lighting where the pole feed runs on higher voltage. Lens Shift optics and a NEMA 3-pin controls receptacle carry across.

Features

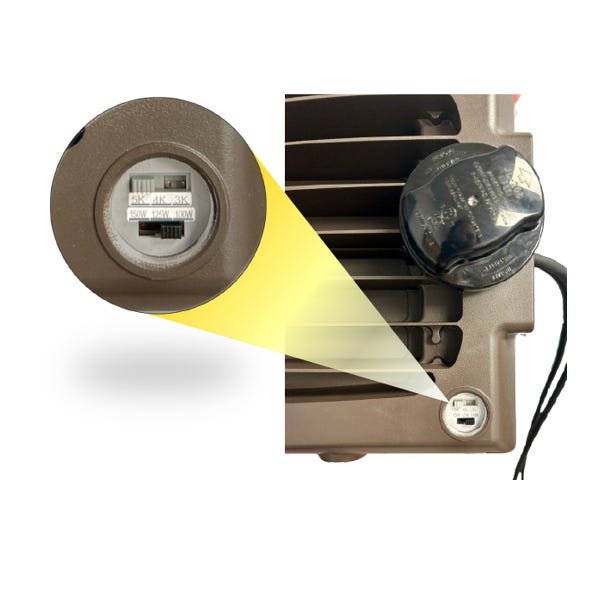

  • Wattage Selectable: 100W, 125W, or 150W
  • Lumens: 13,000 to 22,200
  • Color Temperature Selectable: 3000K, 4000K, or 5000K

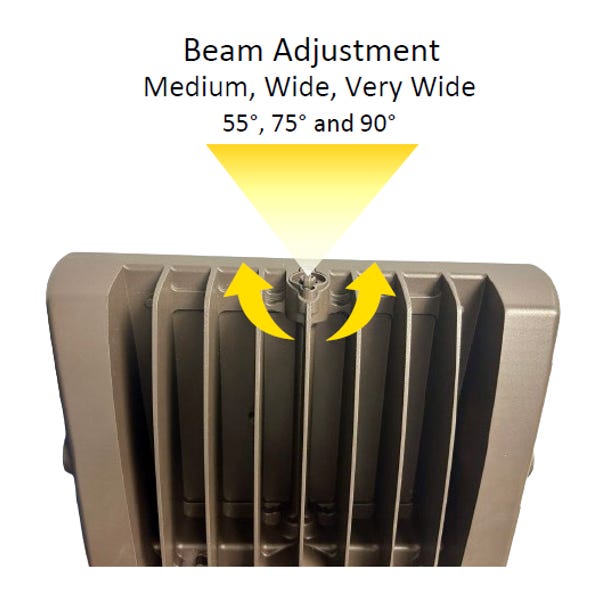

  • Beam Angle: 55°, 75°, or 90° (Lens Shift adjustable)
  • Lens Shift NEMA Distributions: 6H x 7V, 6H x 6V, or 7H x 6V
  • CRI: 80
  • Voltage: 277-480VAC (high voltage)
  • Dimming: 0-10V

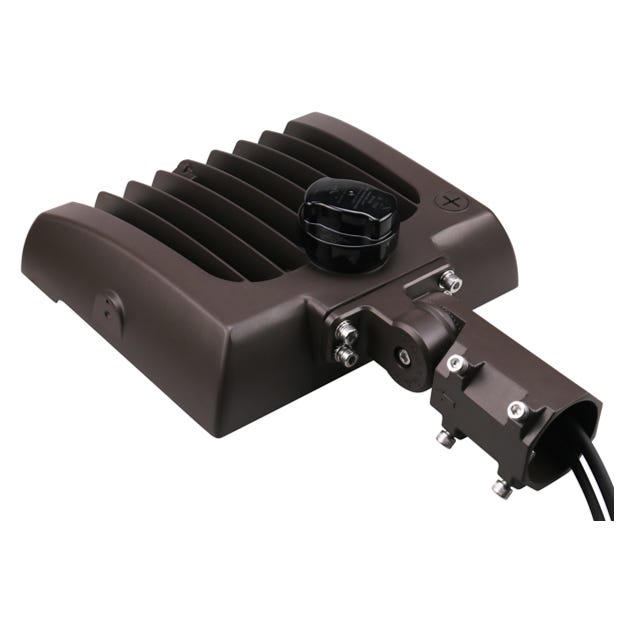

  • Controls Receptacle: NEMA 3-pin
  • Finish: Bronze powder coat

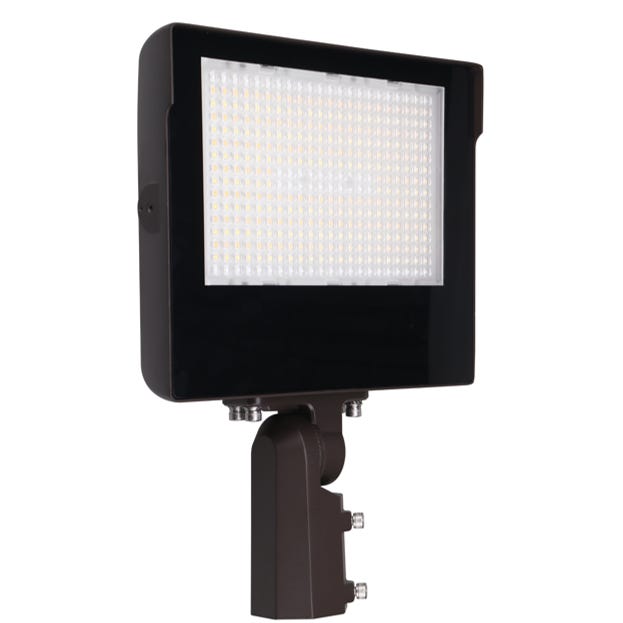

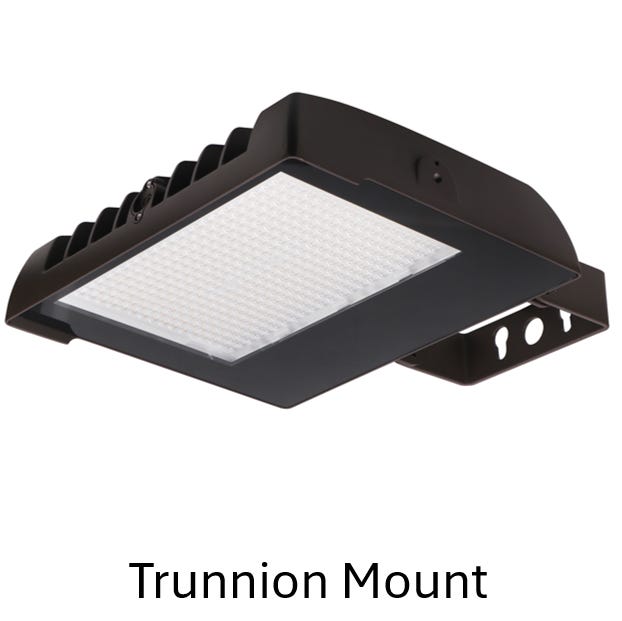

  • Mount: Slip-fit for 2-3/8" tenon with 180° adjustability, or yoke mount
  • IP Rating: IP65
  • Rated Life: 100,000 hours
  • Warranty: 5 years

Ideal For: Industrial site lighting • Utility yards • Large parking areas • Storage and freight terminals • High-voltage commercial installations

UL Listed for wet locations. IP65 rated for outdoor use. Requires 277-480VAC service. NEMA 3-pin receptacle for photocell or network-controls modules (sold separately).

Frequently Asked Questions
How bright is this product?
This product offers 13000-22200 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product offers 3000-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
